Exploded View Diagrams

Exploded View Diagrams

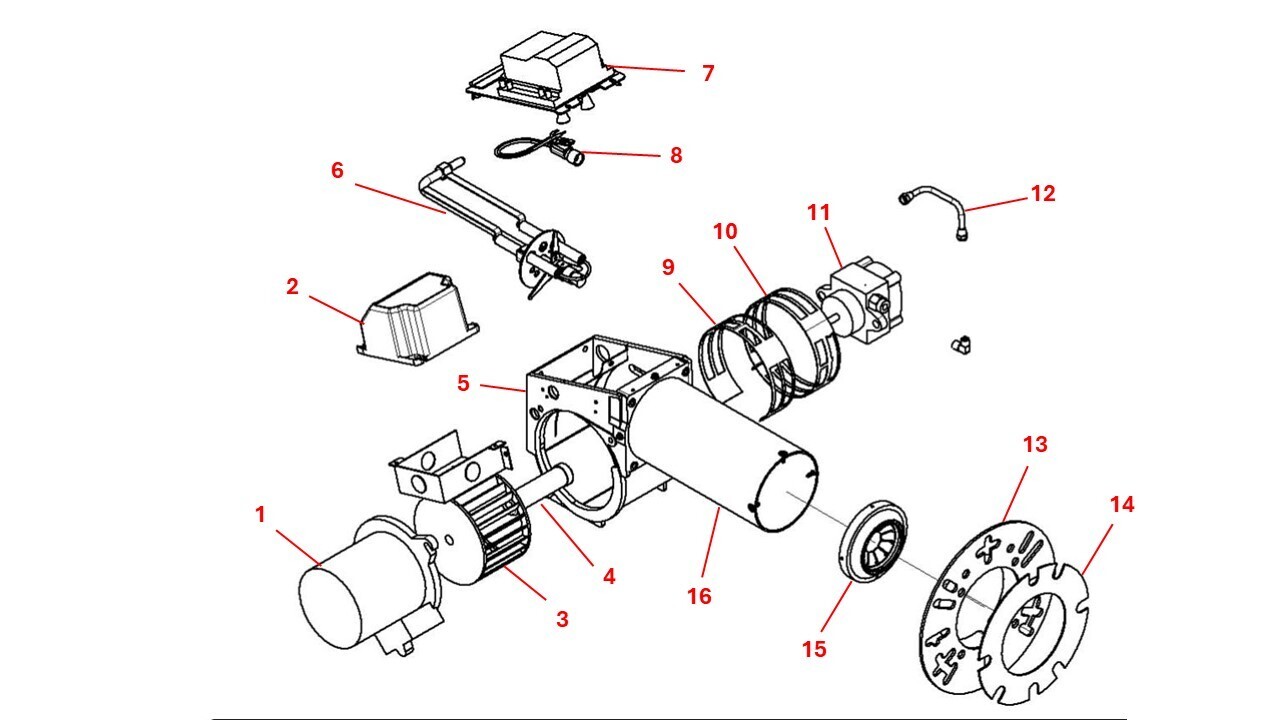

MSR Diagram

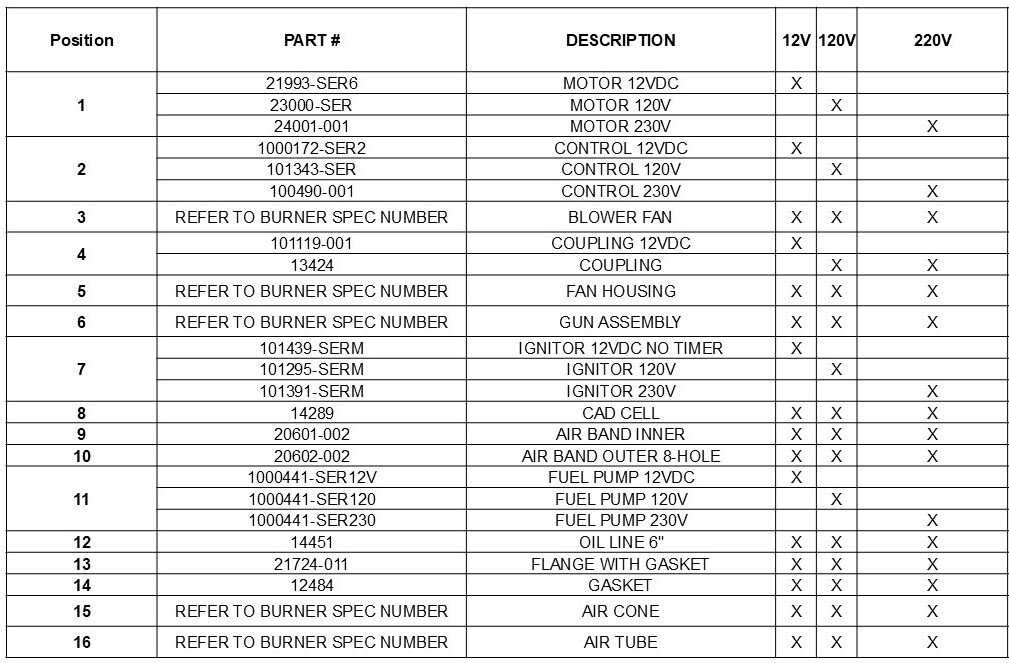

MSR Slide1

MSR Slide2

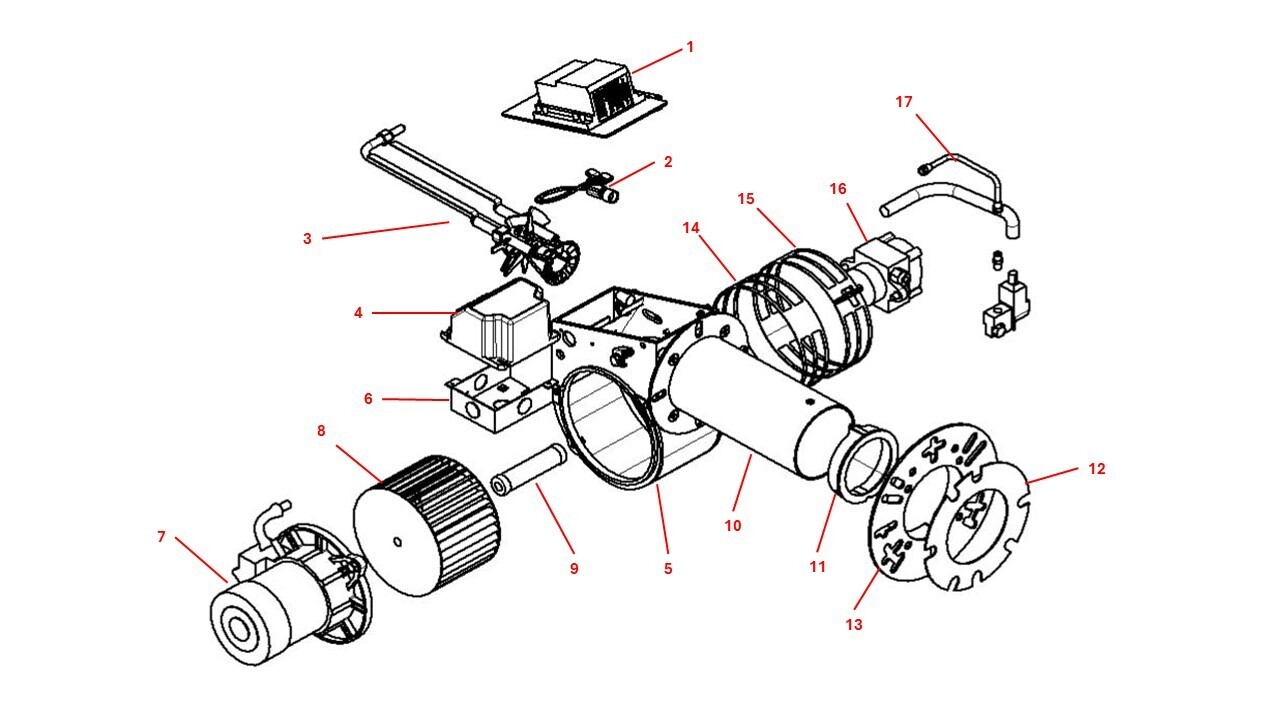

EH Diagram

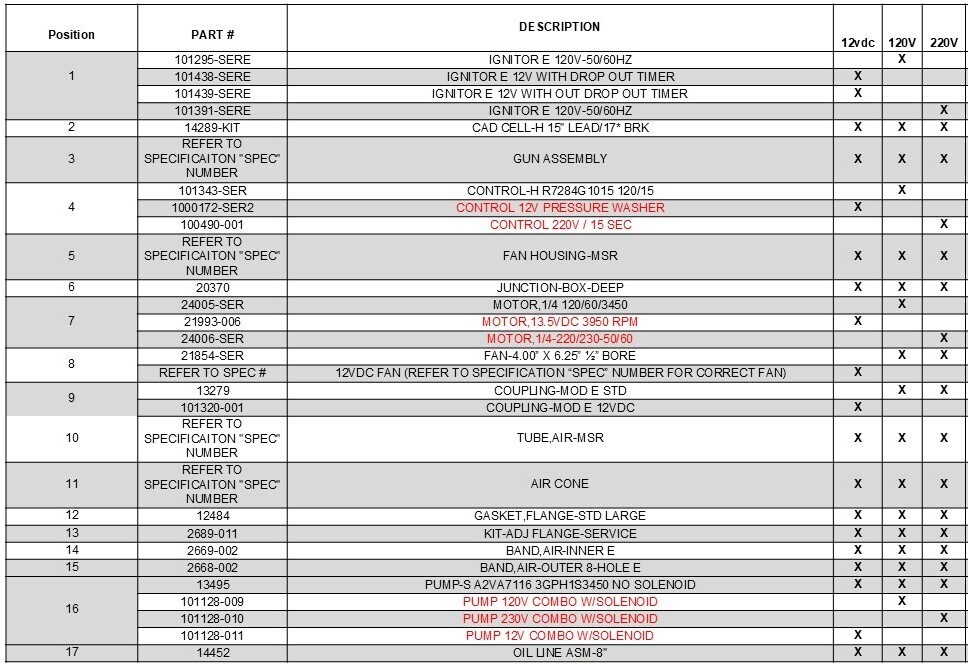

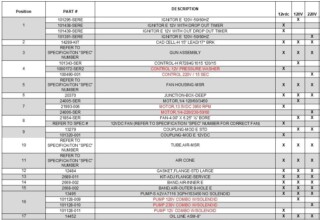

EH Slide1

EH Slide2

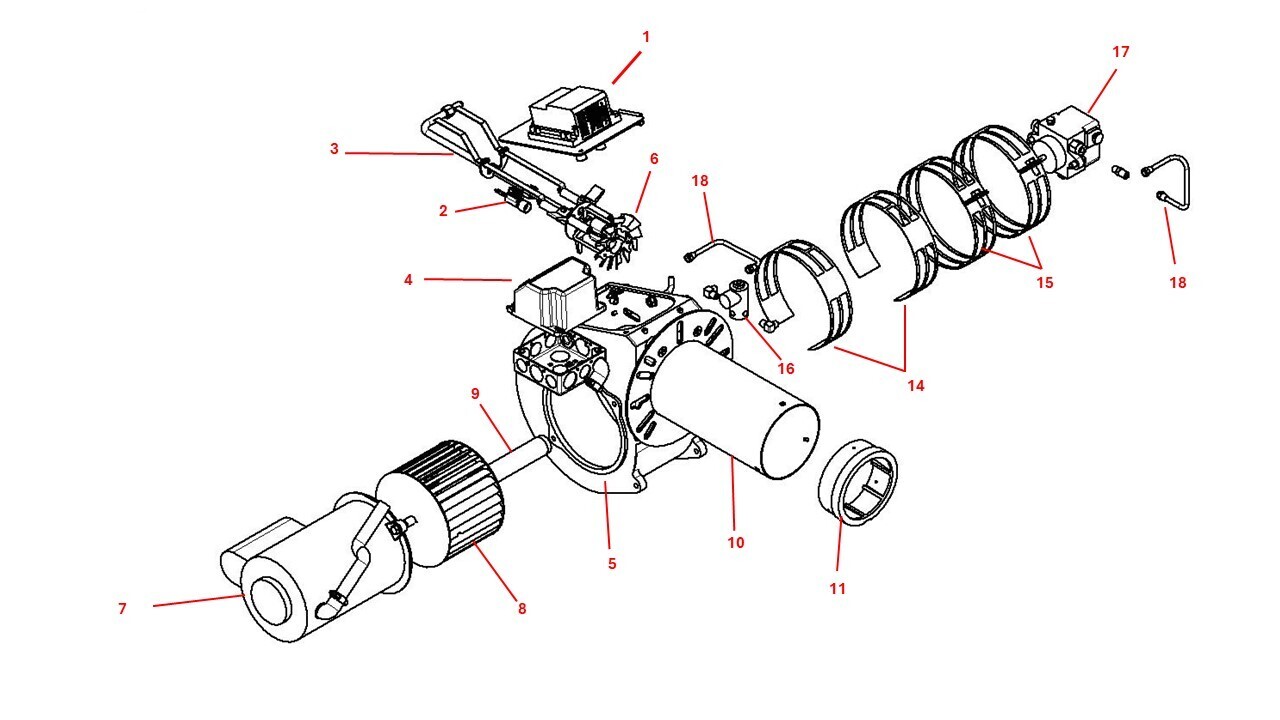

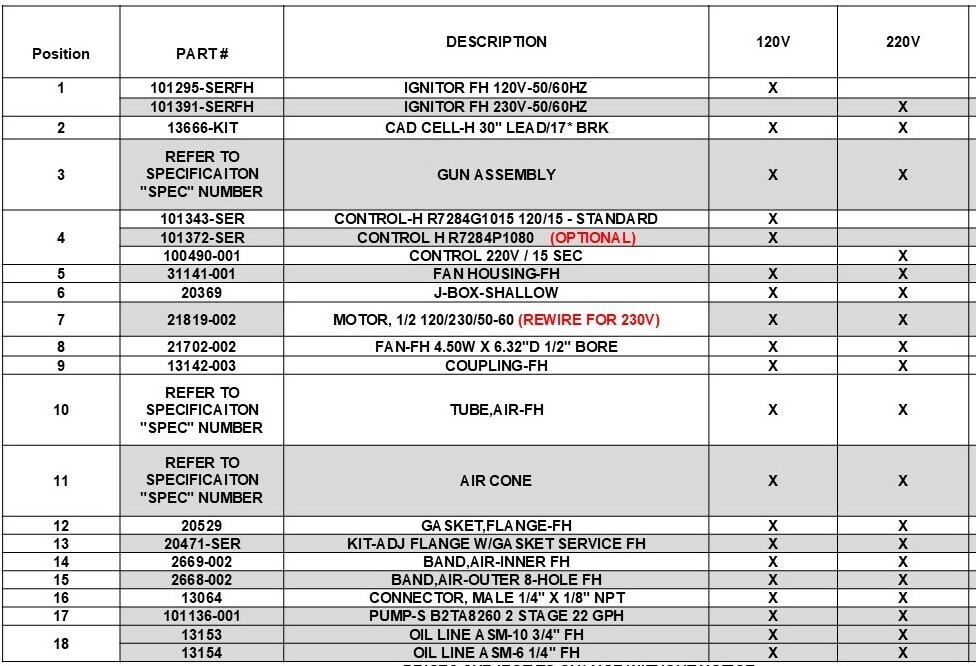

FH Diagram

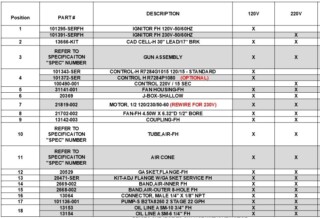

FH Slide1

FH Slide2

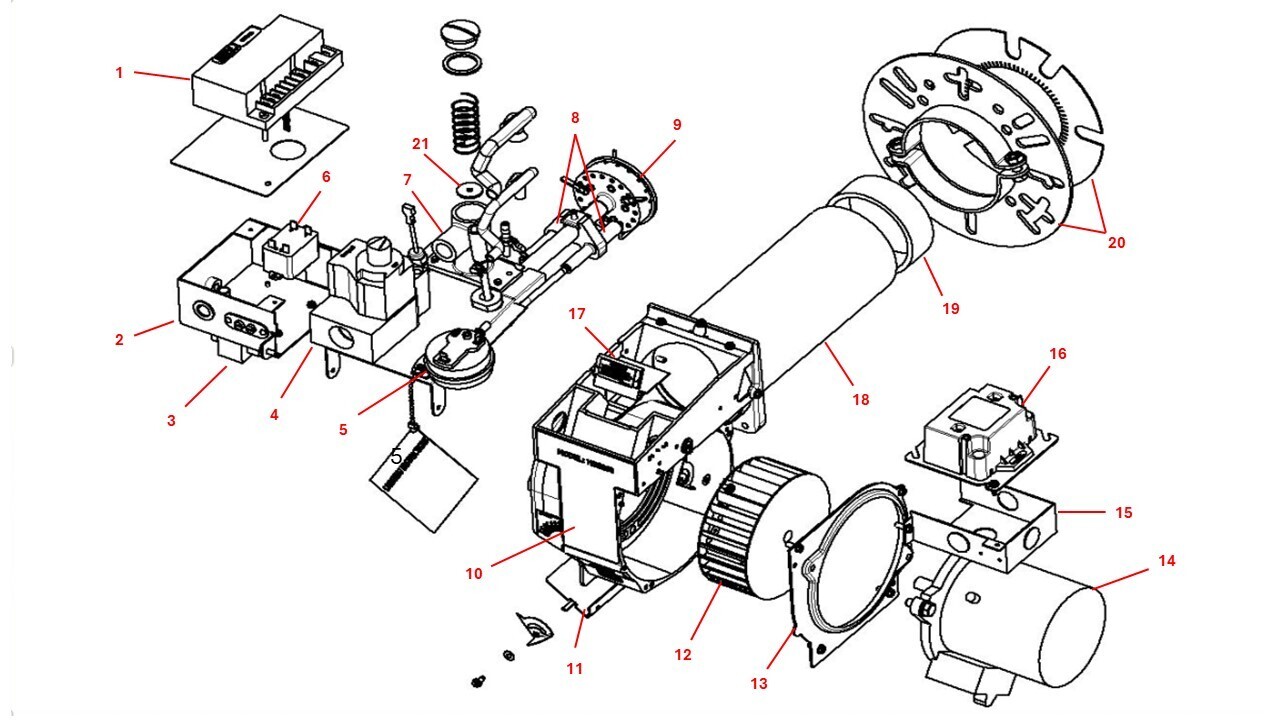

HSG200 Diagram

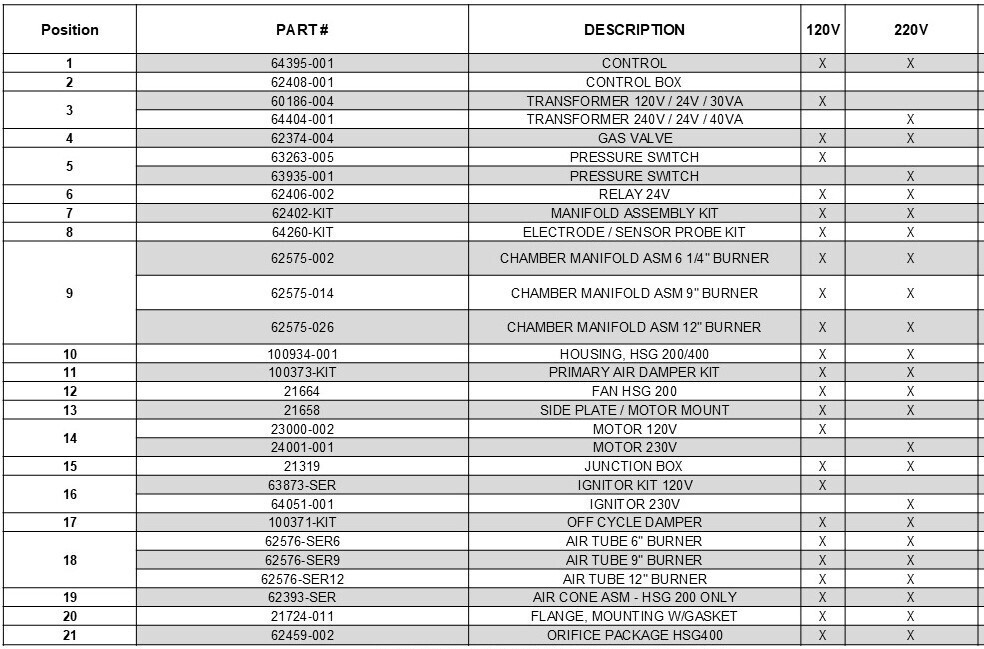

HSG200 Slide1

HSG200 Slide2

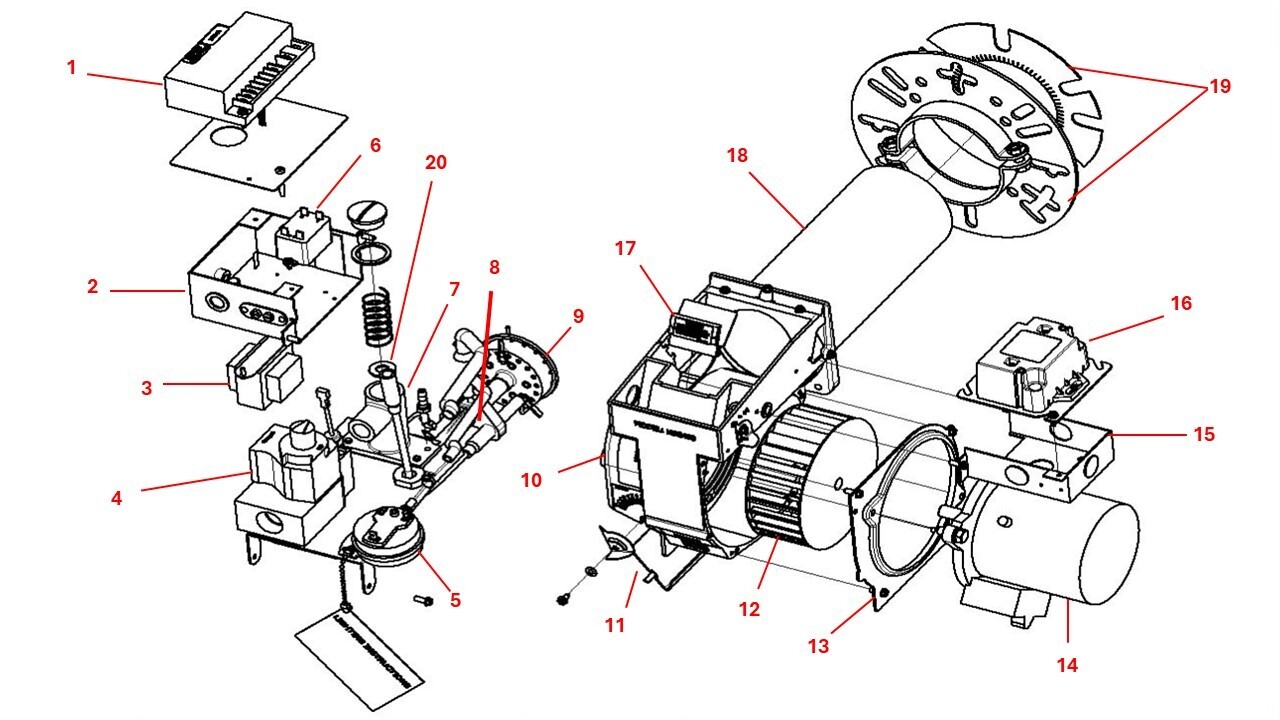

HSG400 Diagram

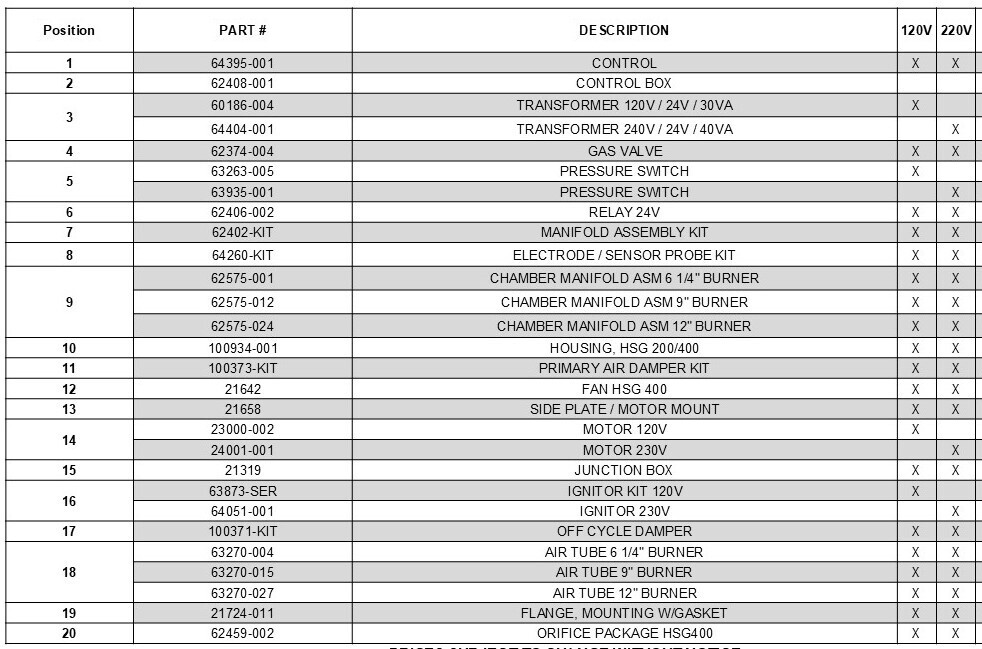

HSG400 Slide1

HSG400 Slide2

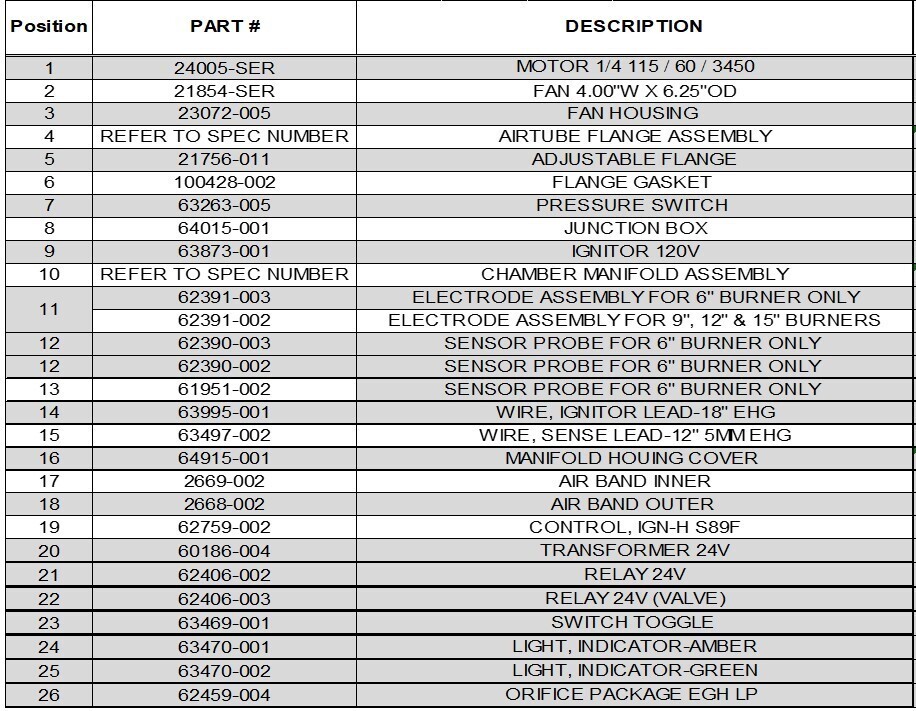

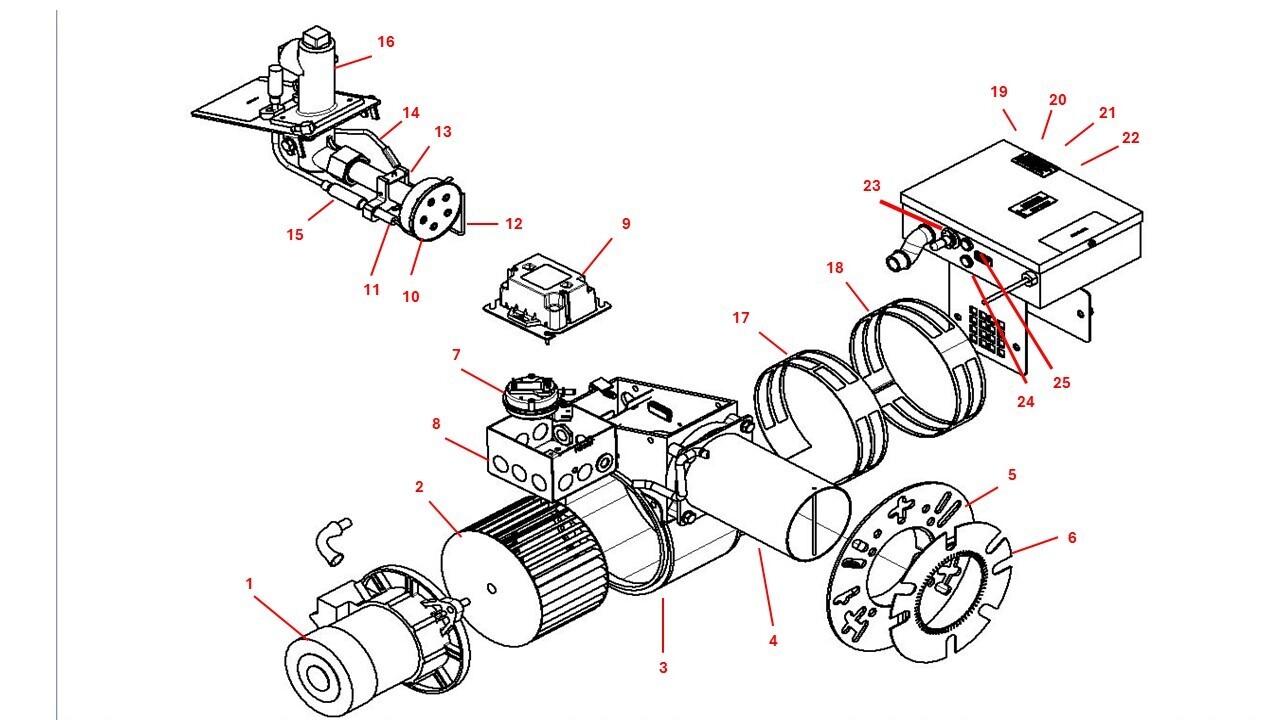

EHG Diagram (UL Mandated Gas Train Not Shown)

EHG Slide1

EHG Slide2
