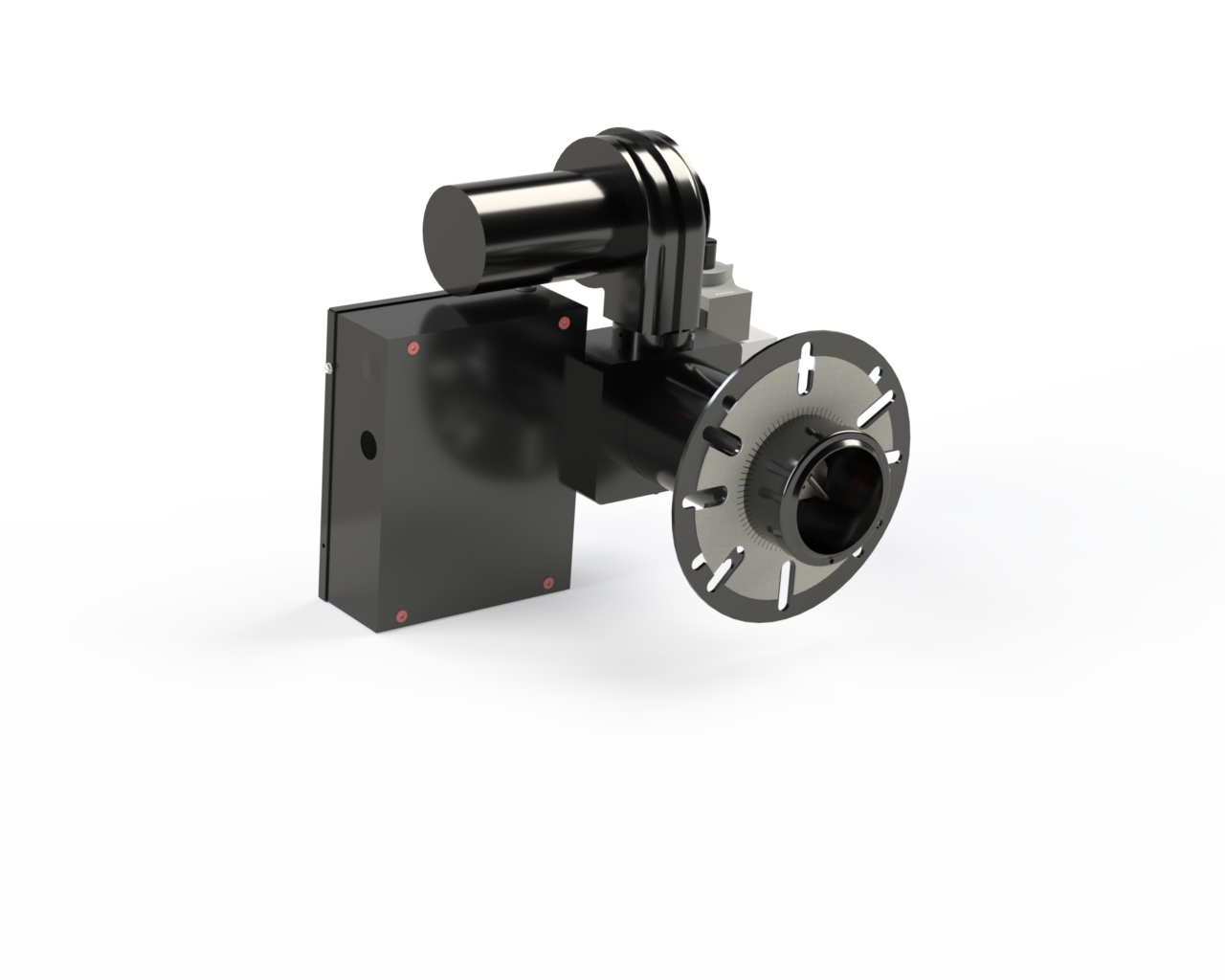

P265F BB-E
65,000 - 200,000 Btu/hThe P265F BB-E Boiler Burner features Wayne's new electrical enclosure design and muli-try ignition. Similar to the standard P265F BB, it's exclusively designed for conversion of boilers from oil to gas operation.
This model utilizes a stainless steel air tube and stainless steel air tube end focusing ring to provide a tighter, shorter flame pattern, The P265F BB yields a high efficiency conversion, low emissions and is extremely simple to service. Maximum 6 3/8" usable insertion.
Quickly locate an authorized Wayne distributor near you.
The P265F BB-E Boiler Burner features Wayne's new electrical enclosure design and muli-try ignition. Similar to the standard P265F BB, it's exclusively designed for conversion of boilers from oil to gas operation.
This model utilizes a stainless steel air tube and stainless steel air tube end focusing ring to provide a tighter, shorter flame pattern, The P265F BB yields a high efficiency conversion, low emissions and is extremely simple to service. Maximum 6 3/8" usable insertion.
If you're looking for a gas conversion burner, the P265 from Wayne may be the perfect fit.
| Name | Value |
|---|---|
| Air Tube Length(s) | 7.375" |
| Air Tube Diameter(s) | 4" |
| Electrical (Voltage) | 120V |
| Electrical (Hertz) | 50 Hz, 60 Hz |
| Floor Area | Minimum 0.6 sq/in / 1,000 Btu/hr; Maximum 0.9 sq/in / 1,000 Btu/hr |
| Fuel | Natural Gas |
| Gas Inlet Connection | 1/2" NPT |
| Ignition | Direct Spark |
| Maximum BTU/Hr Input | 200,000 Btu/hr |
| Minimum BTU/Hr Input | 65,000 Btu/hr |
| Modulation Option Available | Yes |
| Overall Height | 13.76" |
| Overall Width | 17.04" |
| Overall Length | 14.63" |
| Shipping Weight | 24 lbs |
