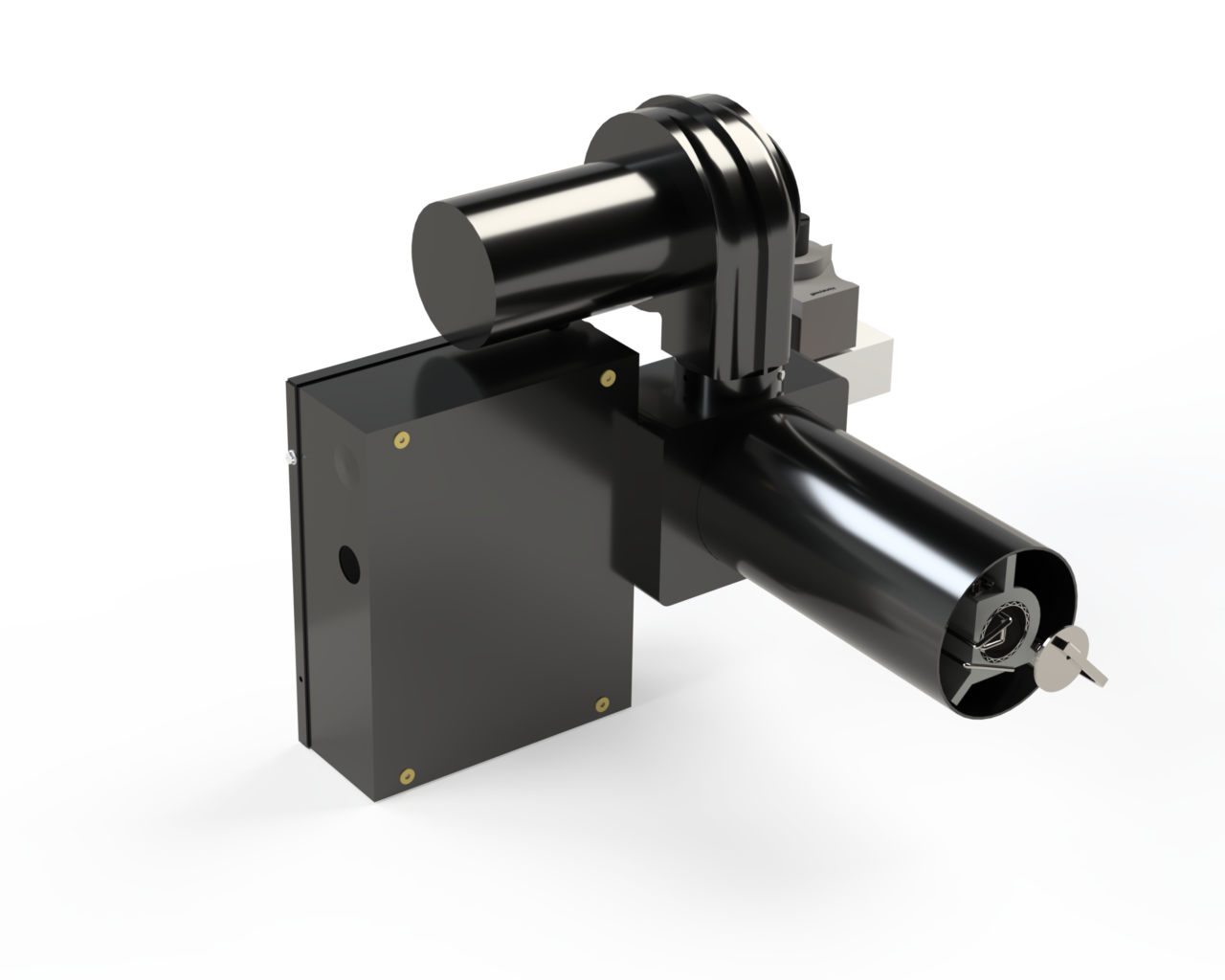

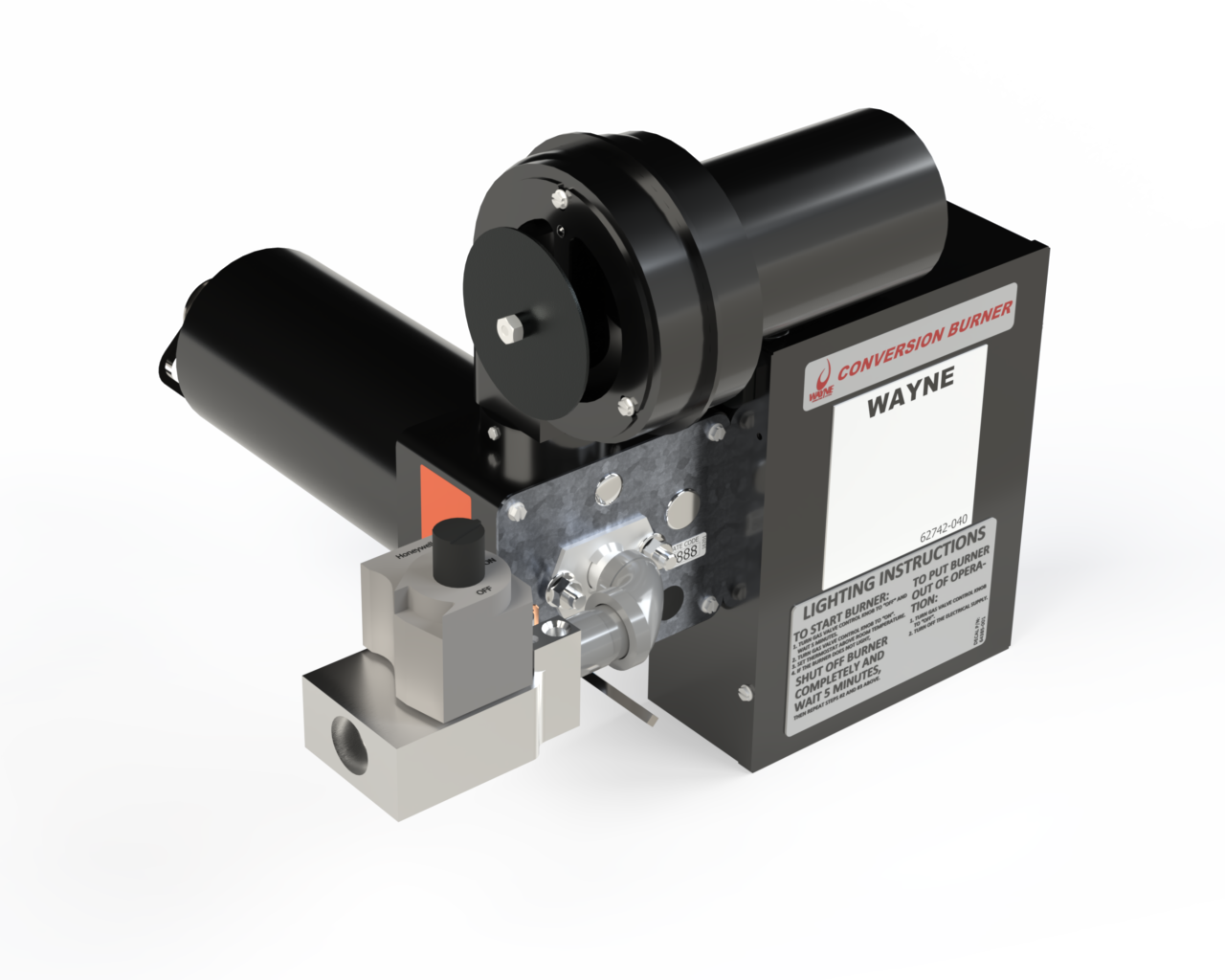

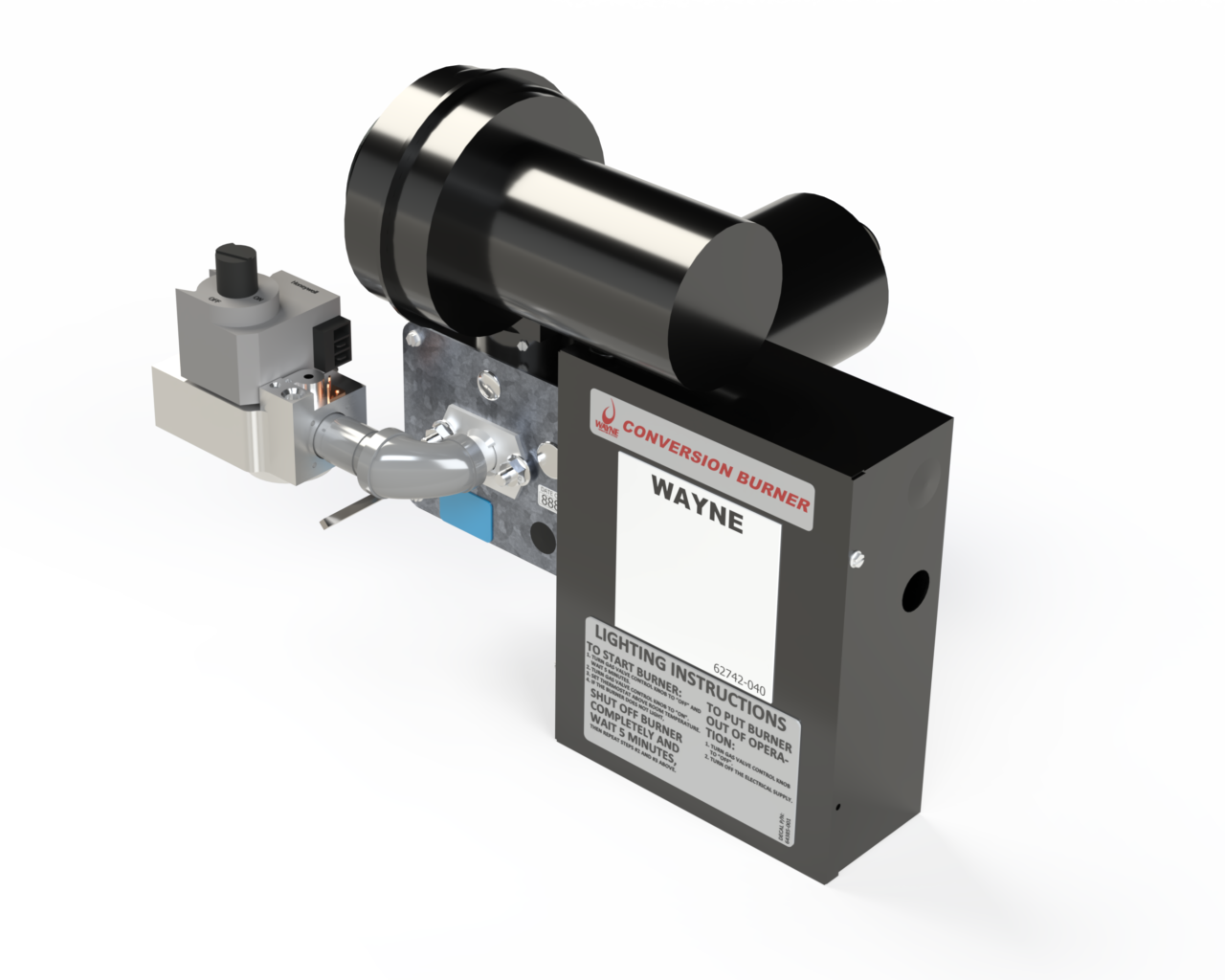

With a firing range of 50,000 – 250,000 Btu/hr., the P250AF-E features an attractive electrical enclosure, muti-try ignition and easy installation. Built specifically for oil to gas conversion applications, this burner is built to deliver years of worry free operation.
Options/Variations: 64465, 64466,
With a firing range of 50,000 – 250,000 Btu/hr., the P250AF-E features an attractive electrical enclosure, muti-try ignition and easy installation. Built specifically for oil to gas conversion applications, this burner is built to deliver years of worrry free operation.
An adjustable flame spreader allows tailoring of the flame shape to the combustion chamber, making this burner extremely flexible and versatile in the field.
Built from a die cast aluminum housing for precise alignment of parts, the P250AF-E includes a universal mounting flange appropriate for any application. Its cast iron venturi provides superior mixing of gas and air for maximum efficiency and control. When compared to atmospheric burners, an efficiency of up to 30% can be obtained.
All models are factory wired and test fired prior to shipment.
| Name | Value |
|---|---|
| BTU | 50,000 - 250,000 Btu/hr |
| Agency Approvals | (UL) MH9297, CSA 189810-1156769, (MASS) G3-0616-554, (MEA NYC) 83-82-E |
| Air Tube Length(s) | 8" |
| Air Tube Diameter(s) | 4" |
| Electrical (Voltage) | 120V |
| Electrical (Hertz) | 50 Hz, 60 Hz |
| Floor Area | Minimum 0.6 sq/in / 1,000 Btu/hr; Maximum 0.9 sq/in / 1,000 Btu/hr |
| Fuel | Natural Gas or LP |
| Gas Inlet Connection | 1/2" NPT |
| Ignition | Direct Spark |
| Maximum BTU/Hr Input | 250,000 Btu/hr |
| Minimum BTU/Hr Input | 50,000 Btu/hr |
| Modulation Option Available | Yes |
| On/Off Availability | Yes |
| Adjustable Flame Spreader | Yes |
| Overall Height | 13.76" |
| Overall Width | 17.04" |
| Overall Length | 14.28" |
| Shipping Weight | 24 lbs |
