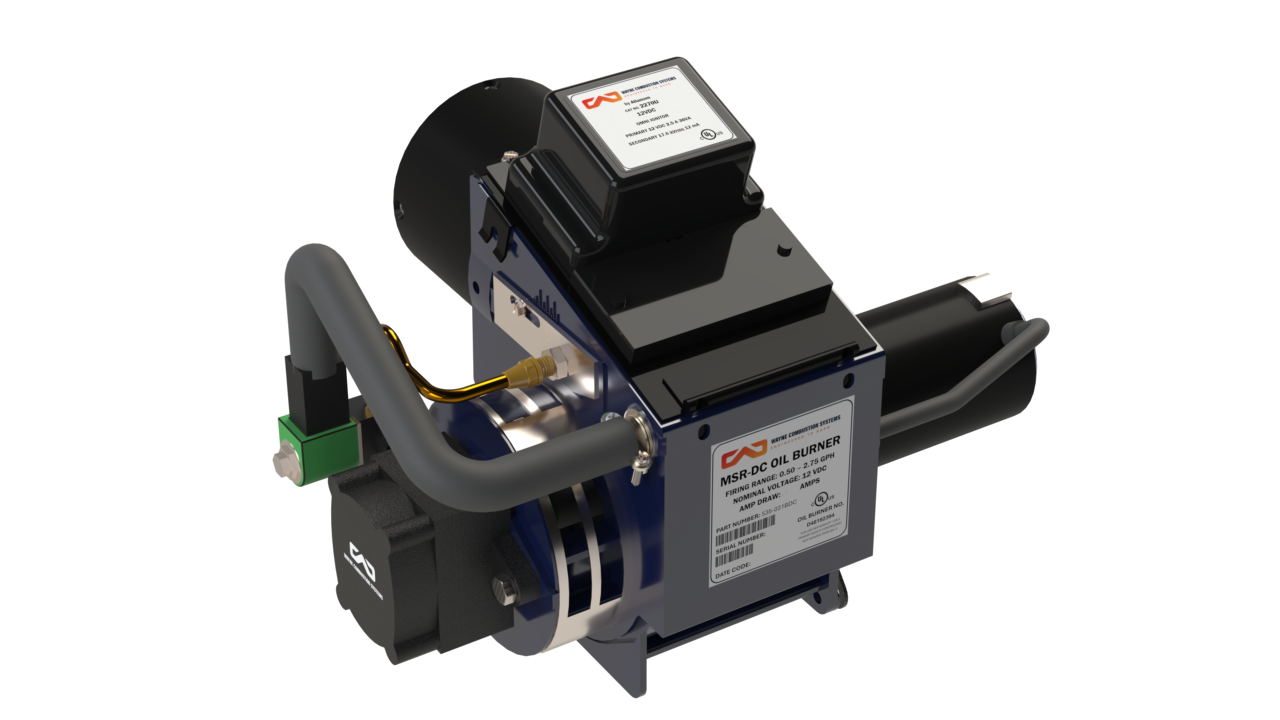

The Wayne MSR is specifically designed for use with No. 1 and No. 2 fuel oil. Available in 120V or 220/240V, this burner maintains low nozzle temperatures, positive flame retention and a controlled flame pattern.
Ideal for high static applications, the MSR burner features our very own Flamelock® retention head for improved efficiency and lower emissions.
Options/Variations: 300-105B (6"), 300-109B (9"),
The Wayne MSR is specifically designed for use with No. 1 and No. 2 fuel oil. Available in 120V or 220/240V, this burner maintains low nozzle temperatures, positive flame retention and a controlled flame pattern.
Ideal for high static applications, the MSR burner features our very own Flamelock® retention head for improved efficiency and lower emissions.
All MSR burners are test fired prior to shipment.
| Name | Value |
|---|---|
| Air Adjustment | Air adjusting bands interlock for positive air adjustment. |
| Air Tube Length(s) | 4", 6", 9", 12", 15", 18" |
| Capacities | 0.50 - 2.75 GPH |
| Controls | Optional safety primary control & CAD cell. |
| Electrical (Voltage) | 120V, 220/240V |
| Fan Housing | One piece, die cast aluminum. |
| Fuel | No. 1 or No. 2 Fuel Oil |
| Fuel Pump | Standard 3450 RPM, one or two-stage |
| Ignition | Solid State |
| Motor | NEMA Standard, 1/7 HP split phase 3450 RPM, 115V, 60 HZ, (50 HZ available) |
| Mounting | Adjustable flange or optional base mount. |
| Nozzle Adaptor | No drip brass adaptor insures sharp oil cutoff when fuel pump shuts off. Bleeds air from line, prevents after drip, eliminating smoke, soot and carbon formation. |
| Overall Height | 11.875" |
| Overall Width | 13.875" |
| Overall Length | 6.875" + tube length |
| Maximum Overall Length | 24.875 |
| Shipping Weight | 29 lbs. |
