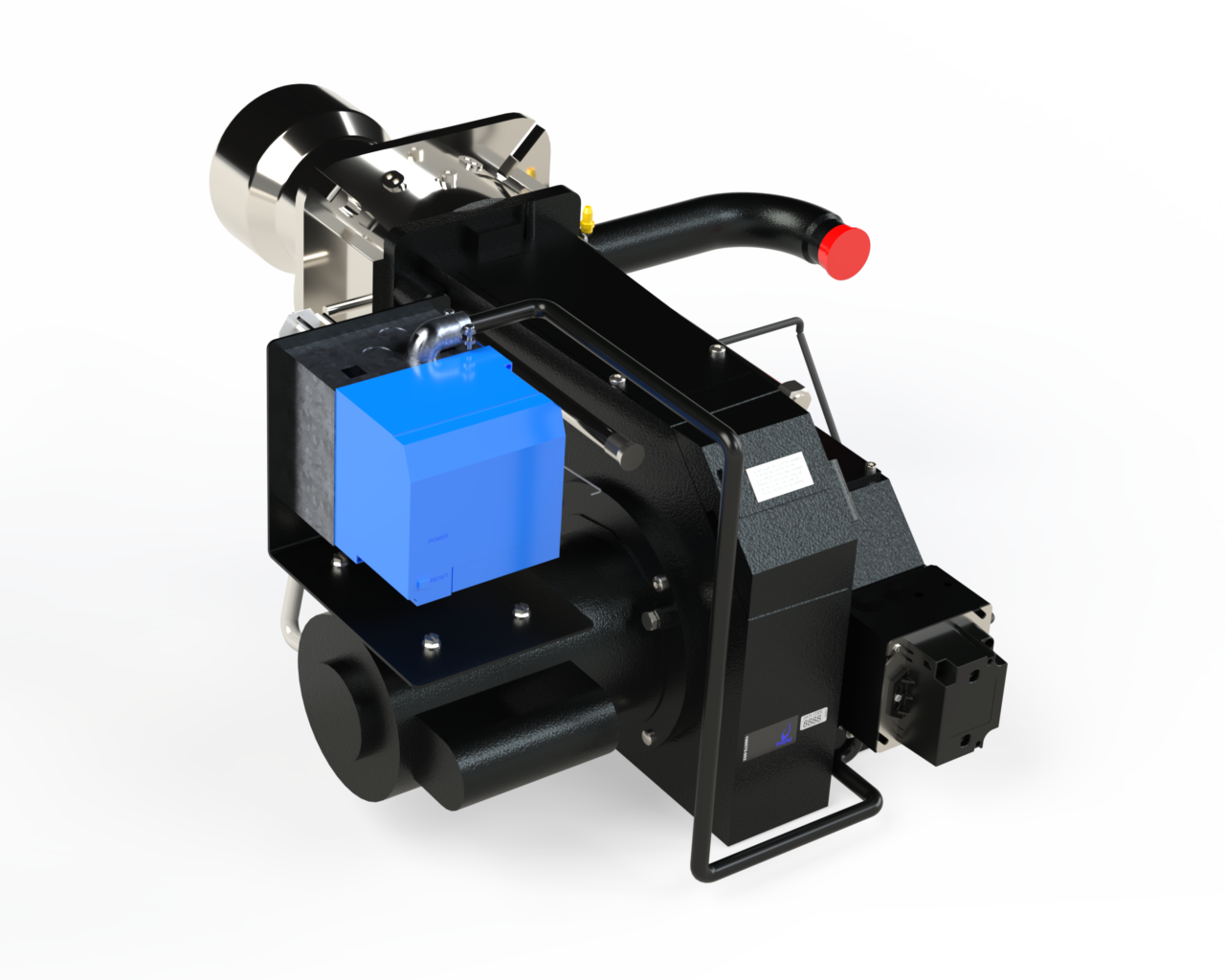

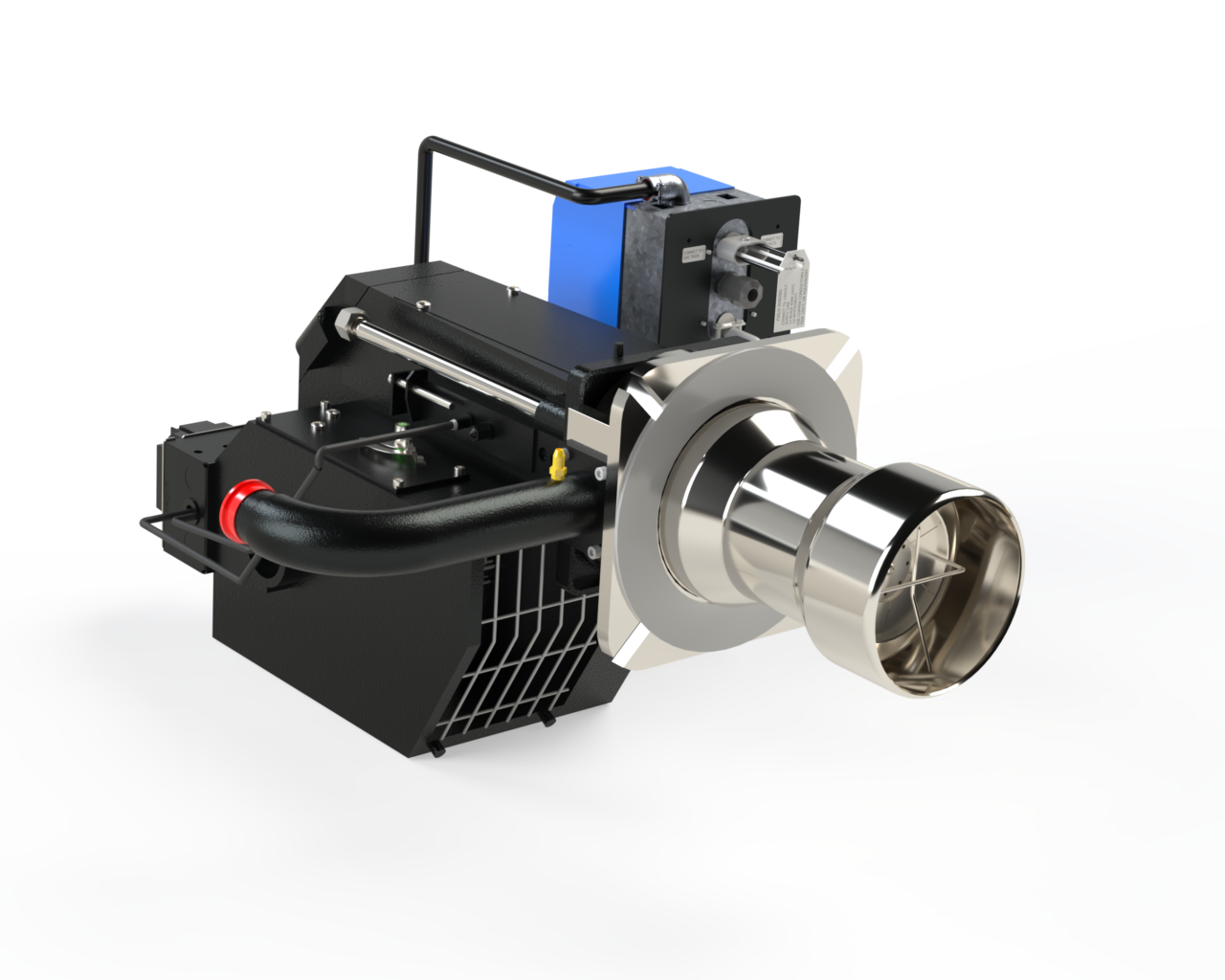

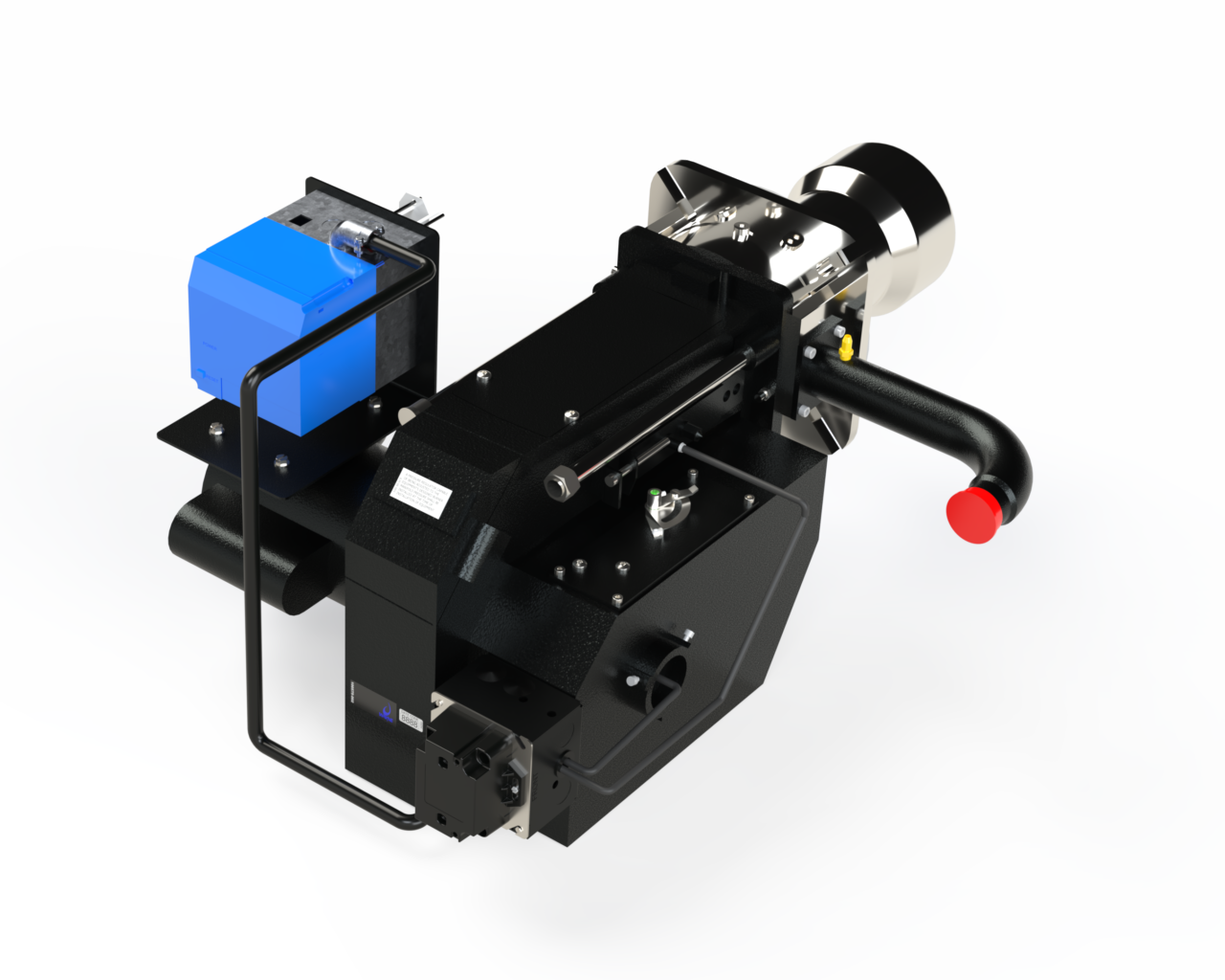

Often better known as the Wayne Nighthawk burner, the LC-2300 power gas burner is built for heavy commercial and light industrial use, firing up to 2.3 million Btu/hr.
Suited perfectly for high static pressure situations, the LC-2300 converts easily from natural gas to LP. With an adjustable head, flames can be customized for best results in any application.
Options/Variations: 63867-001,
Often better known as the Wayne Nighthawk burner, the LC-2300 power gas burner is built for heavy commercial and light industrial use, firing up to 2.3 million Btu/hr.
Suited perfectly for high static pressure situations, the LC-2300 converts easily from natural gas to LP. With an adjustable head, flames can be customized for best results in any application.
The entire firing range of the LC-2300 can be obtained without changing the orifice.
| Name | Value |
|---|---|
| BTU | 1,100,000 - 2,300,000 Btu/hr. |
| Agency Approvals | CSD-1 |
| Air Tube Length(s) | 9" |
| Air Tube Diameter(s) | 6.25" |
| Combustion Head | Nozzle mix, high retention |
| Controls | Flamerod sensor with 4-second trial for ignition |
| Electrical (Voltage) | 120V |
| Fan Housing | Diecast aluminum alloy |
| Firing Range | 1,100,000 - 2,300,000 Btu/hr. |
| Fuel | Natural Gas or LP |
| Ignition | Direct Spark 6,000 V ignition source |
| Maximum Air Tube Insertion | 8" |
| Maximum BTU/Hr Input | Btu/hr |
| Minimum BTU/Hr Input | Btu/hr |
| Motor | 0.75 HP, 3450 RPM, 115 / 208-230, 60HZ |
| Mounting | Cast aluminum flange included |
| On/Off Availability | Yes |
| Gas Train | 1.5" or 2", with CSD-1 & UL795 components |
| Overall Height | 14.60" |
| Overall Width | 28.10" |
| Overall Length | 33.08" |
| Shipping Weight | 85 lbs. |
