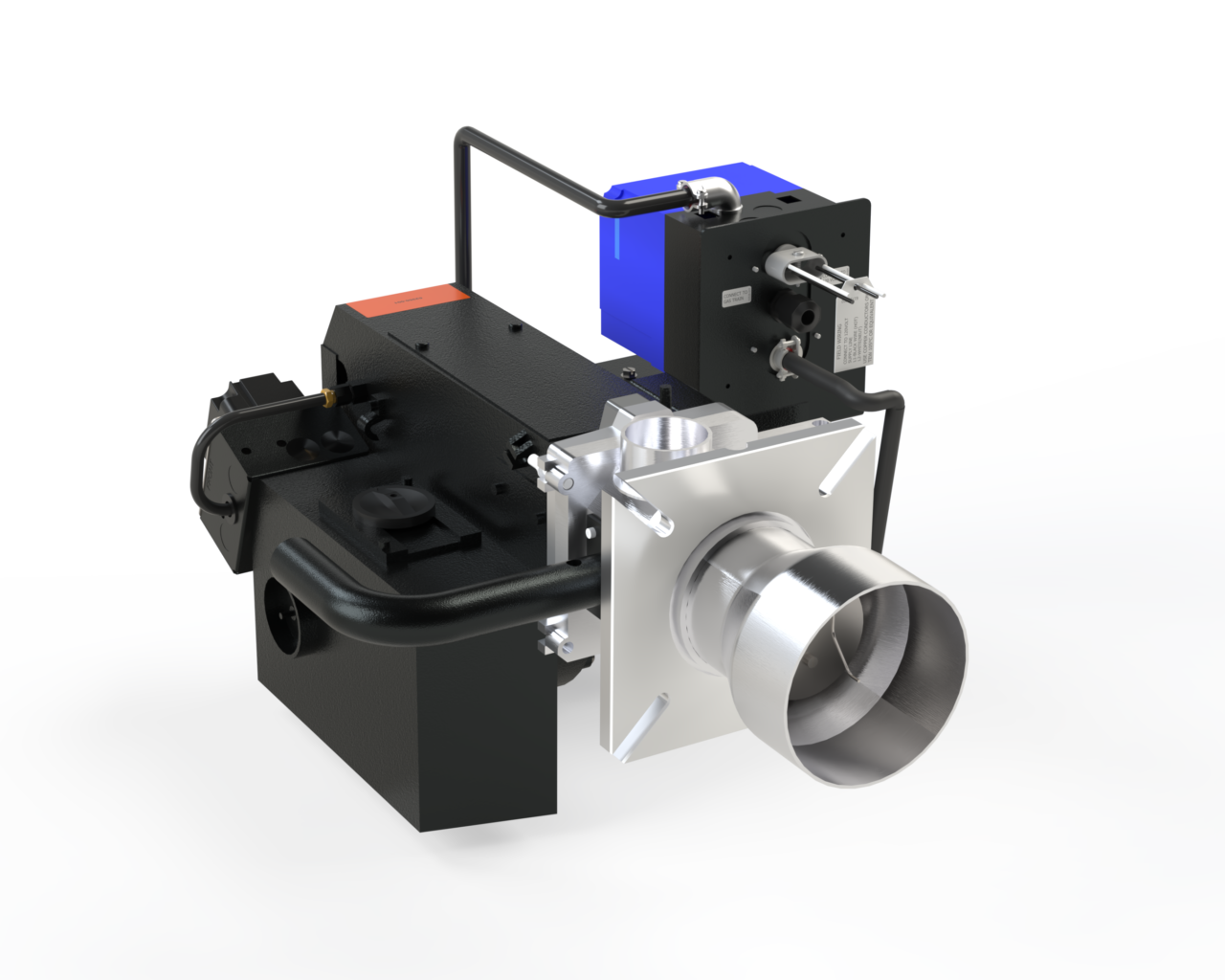

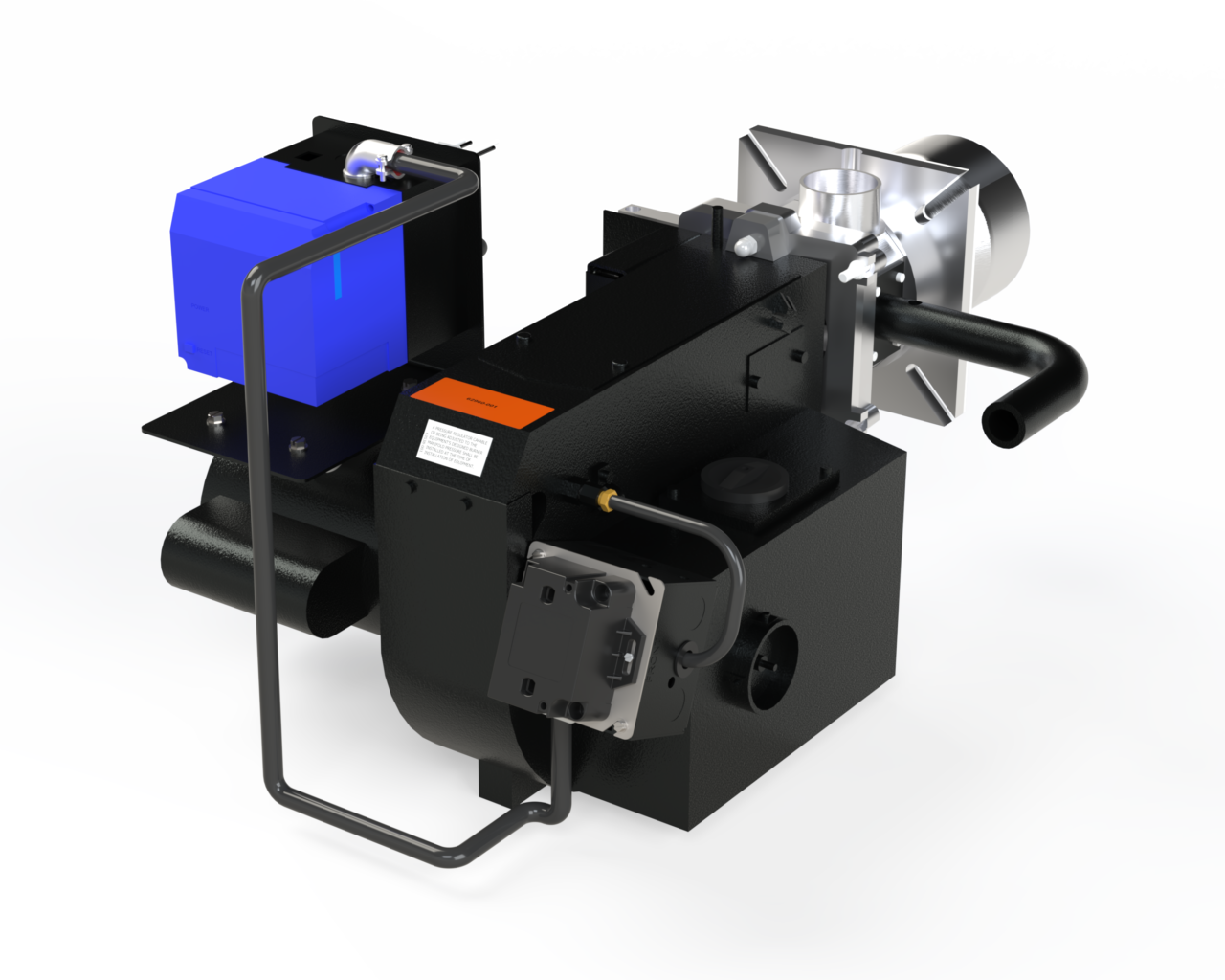

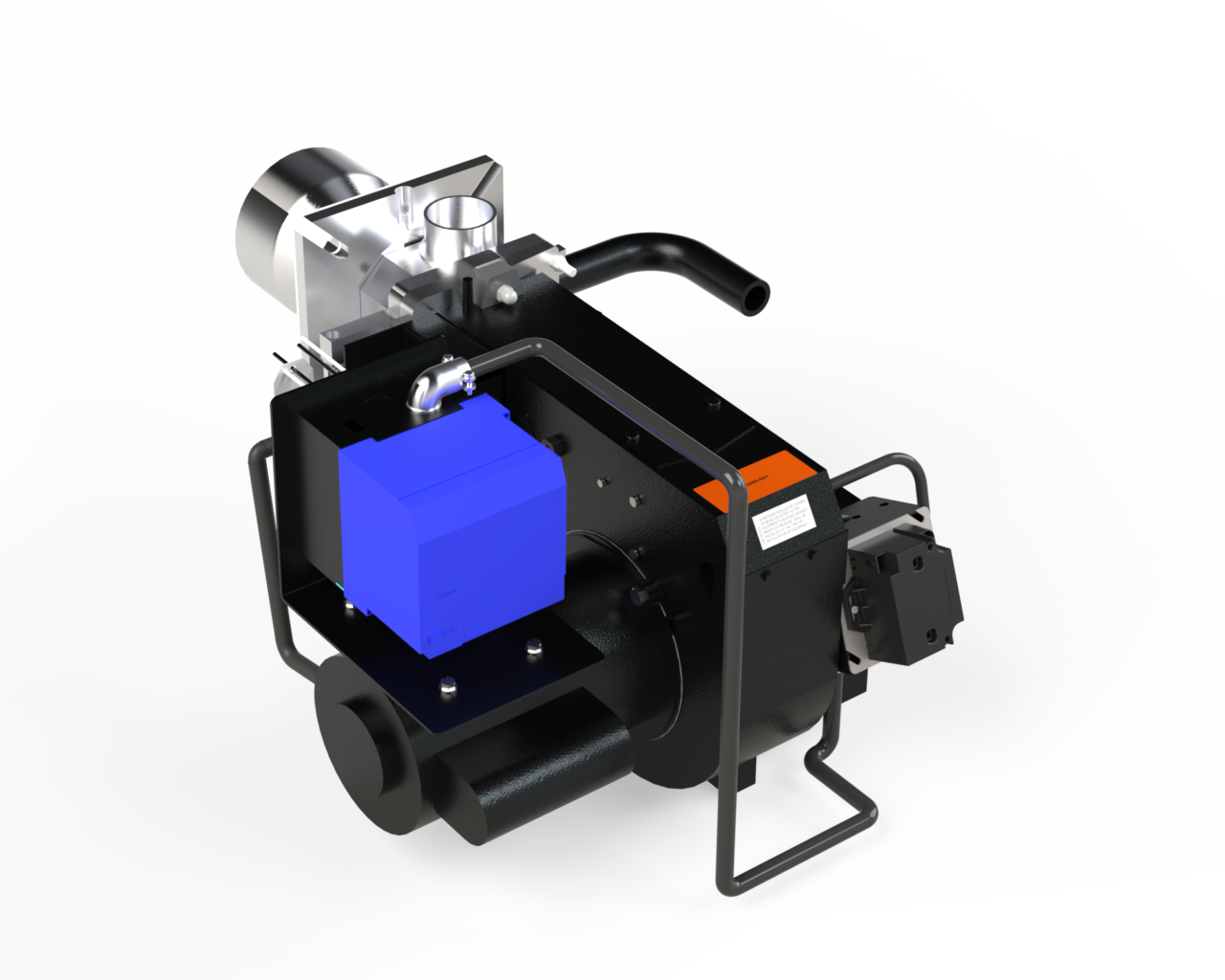

Often better known as the Wayne Nighthawk burner, the LC 1500 power gas burner is built for heavy commercial and light industrial use, firing up to 1.5 million Btu/hr.
Suited perfectly for high static pressure situations, the LC-1500 converts easily from natural gas to LP. With an adjustable head, flames can be customized for best results in any application.
Options/Variations: 63772-001,
Often better known as the Wayne Nighthawk burner, the LC 1500 power gas burner is built for heavy commercial and light industrial use, firing up to 1.5 million Btu/hr.
Suited perfectly for high static pressure situations, the LC-1500 converts easily from natural gas to LP. With an adjustable head, flames can be customized for best results in any application.
The entire firing range of the LC-1500 can be obtained without changing the orifice.
| Name | Value |
|---|---|
| BTU | 700,000 - 1,500,000 Btu/hr. |
| Agency Approvals | CSD-1 |
| Air Tube Length(s) | 6" |
| Air Tube Diameter(s) | 5.75" |
| Combustion Head | Nozzle mix, high retention |
| Controls | Flamerod sensor with 4-second trial for ignition |
| Electrical (Voltage) | 120V |
| Fan Housing | Diecast aluminum alloy |
| Firing Range | 700,000 - 1,500,000 Btu/hr. |
| Fuel | Natural Gas or LP |
| Ignition | Direct Spark 6,000 V ignition source |
| Maximum Air Tube Insertion | 5" |
| Maximum BTU/Hr Input | Btu/hr |
| Minimum BTU/Hr Input | Btu/hr |
| Motor | 0.5 HP, 3450 RPM, 115 / 208-230, 60HZ |
| Mounting | Cast aluminum flange included |
| On/Off Availability | Yes |
| Gas Train | 1.5" CSD-1 components |
| Overall Height | 13.60" |
| Overall Width | 24.33" |
| Overall Length | 28.73" |
| Shipping Weight | 57 lbs. |
