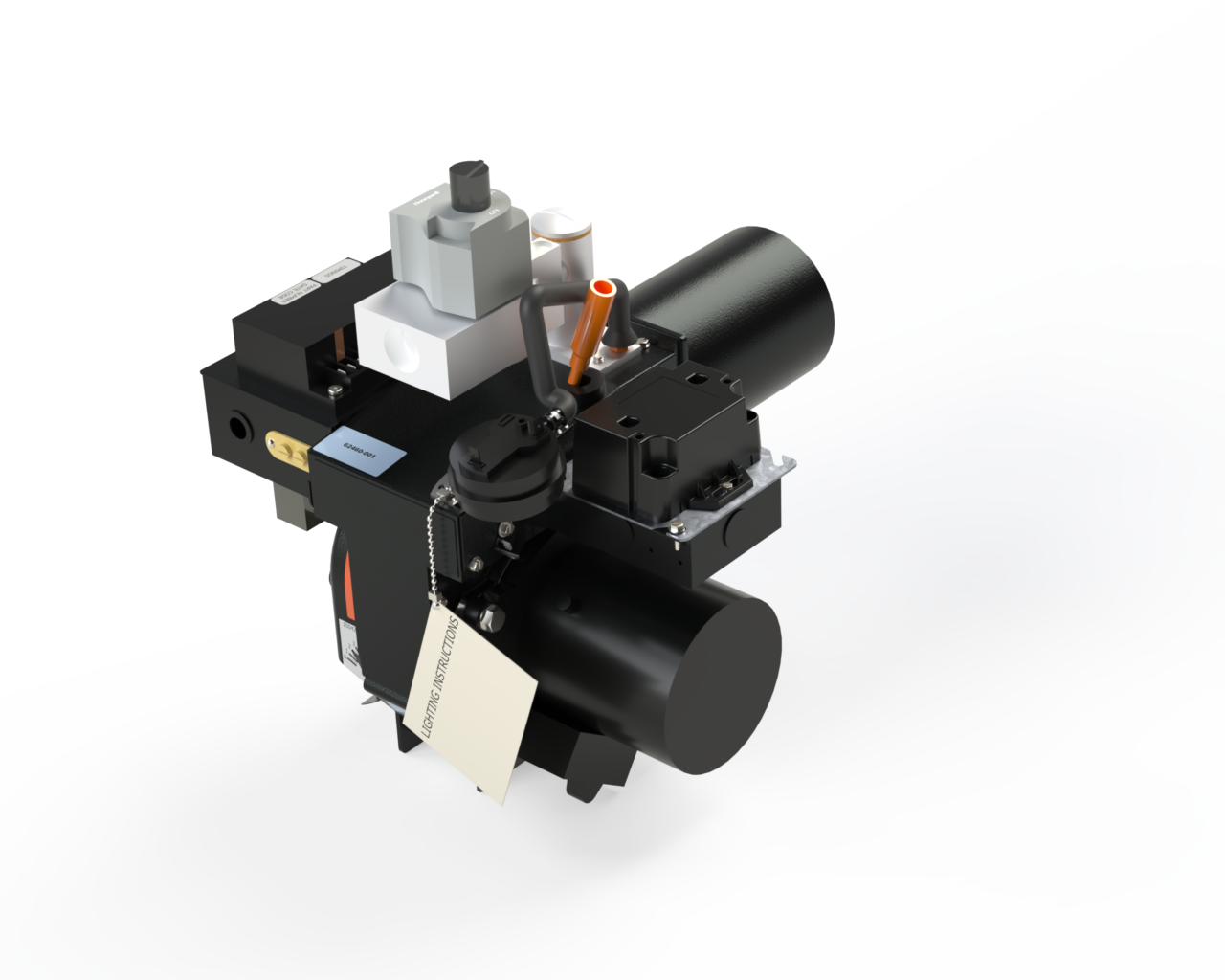

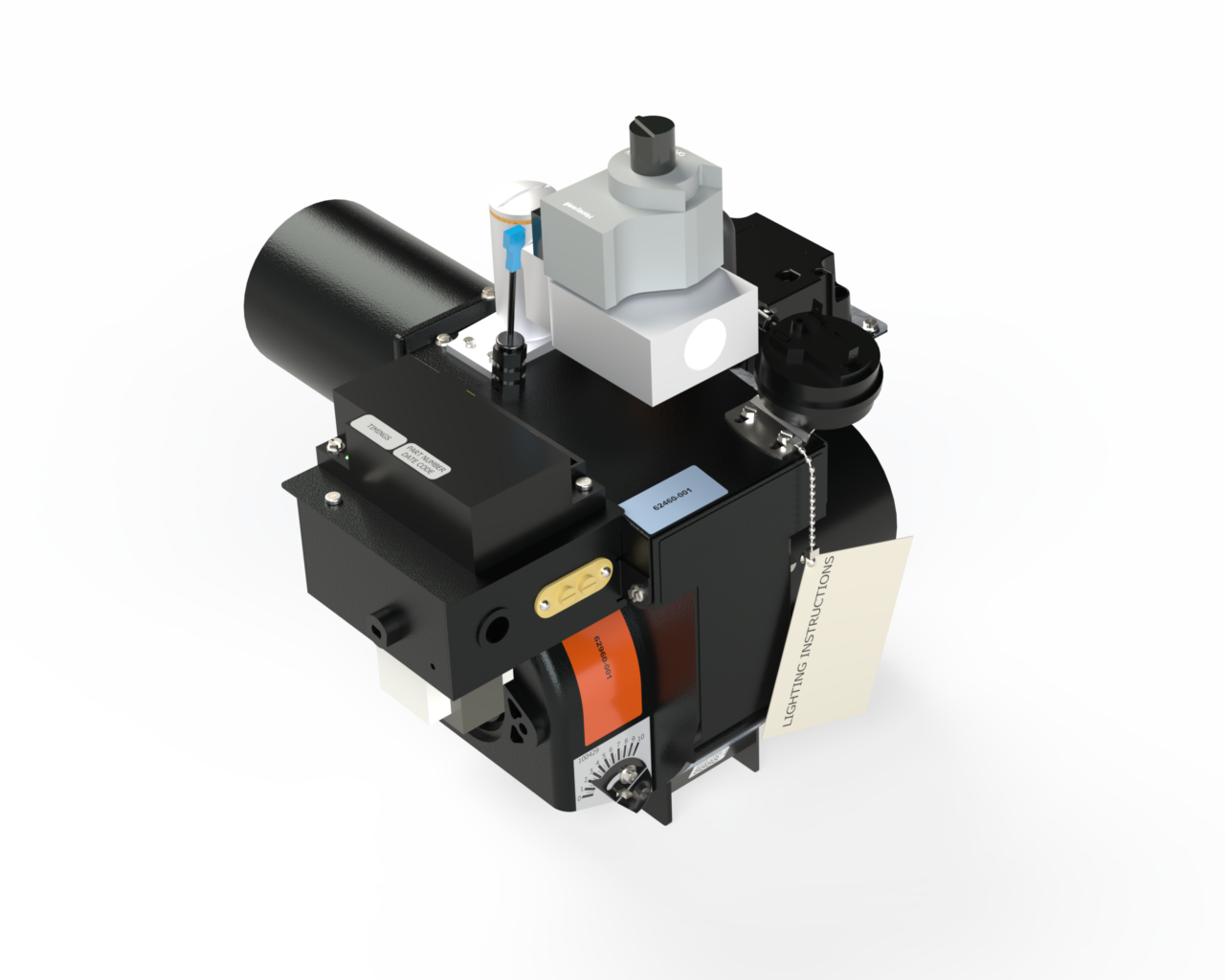

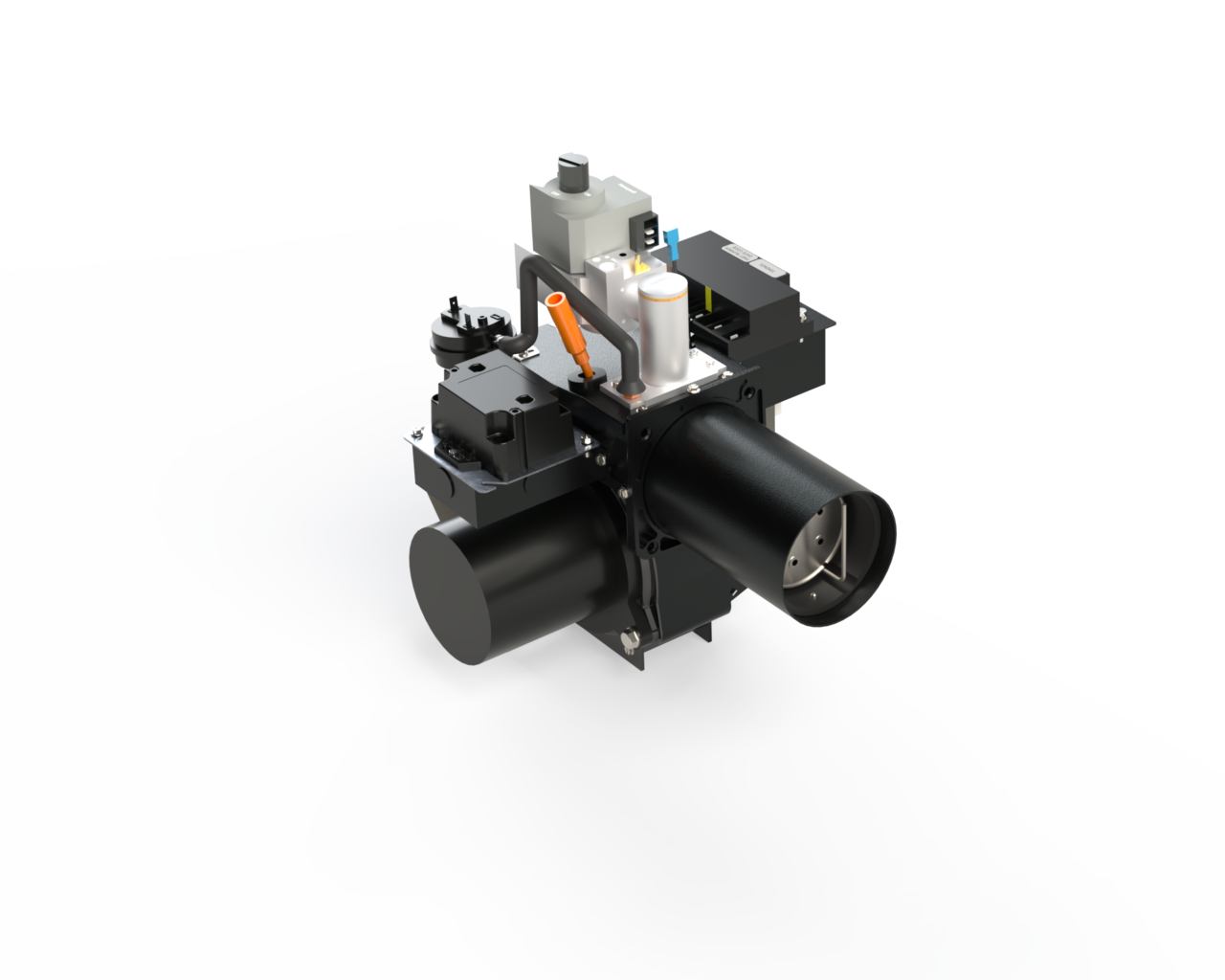

Better known in the field as the Blue Angel burner, the HSG400 remains one of the most widely used power burners around the world in its firing range.
Designed for easy installation, the burner is easy to set-up and has the ability to fire between the entire range. Identify and install the correct orifice, set the gas valve pressure and adjust the primary and off cycle dampers.
Options/Variations: 62377D, 62379D, 62381D,
Better known in the field as the Blue Angel burner, the HSG400 remains one of the most widely used power burners around the world in its firing range.
With good combustion in poor draft situations, the HSG400 delivers the performance and reliability that’s become synonymous with the Wayne name.
Designed for easy installation, the burner is easy to set-up and has the ability to fire between the entire range. Identify and install the correct orifice, set the gas valve pressure and adjust the primary and off cycle dampers.
All HSG400 burners are factory set to fire natural gas, while the firing of LP is easily achieved with an orifice change in the field.
| Name | Value |
|---|---|
| BTU | 200,000 - 400,000 Btu/hr |
| Agency Approvals | CSA 189810-1154925, MEA 49-83-E, MASS G3-0616-554 |
| Air Tube Length(s) | 6.25", 9", 11" |
| Air Tube Diameter(s) | 4" OD |
| Controls | 24V combination control, 3/4" IPS redundant valve. Flamerod sensor with 4 second safety delay. |
| Electrical (Voltage) | 120V, 220/240V |
| Electrical (Hertz) | 50 Hz, 60 Hz |
| Fan Housing | One-piece aluminum alloy diecast housing |
| Firing Range | 200,000 - 400,000 Btu/hr |
| Fuel | Natural Gas & LP |
| Maximum Air Tube Insertion | 1" less than overall tube length |
| Maximum BTU/Hr Input | Btu/hr |
| Minimum BTU/Hr Input | Btu/hr |
| Overall Height | 12.5" |
| Overall Width | 13.5" |
| Overall Length | 7.75" + tube length |
| Shipping Weight | 35 lbs. |
