HS .50 - 3.00 GPH

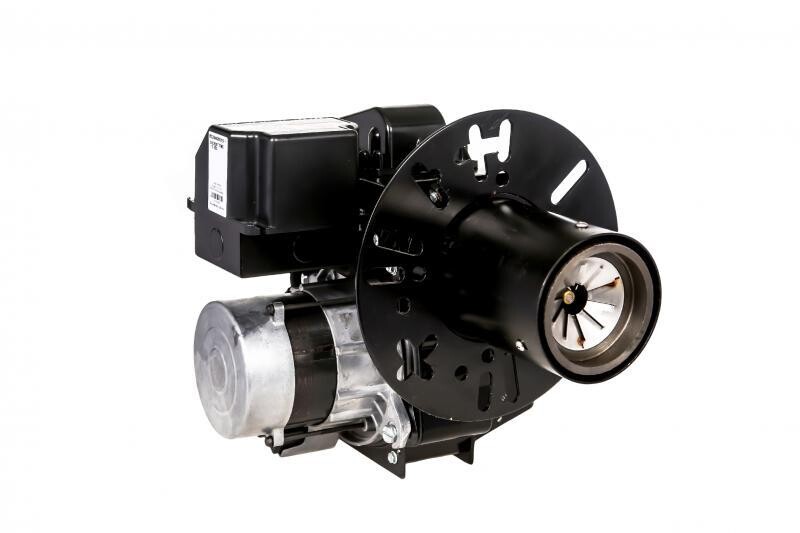

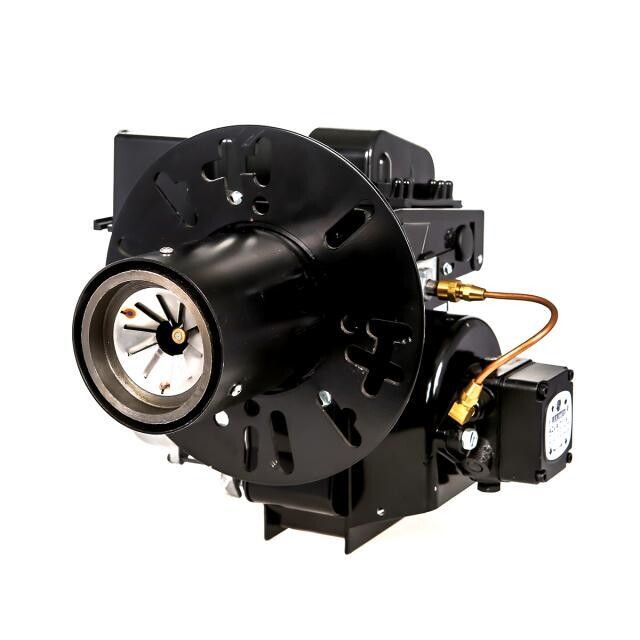

Wayne’s HS burner models provide superior reliability and ultra-high efficiency. Their exclusive flow design provides forced air delivery at twice the normal pressure for more efficient combustion, application versatility and improved venting in poor draft conditions.

It’s Flamelock® retention head makes achieving a precise flame size, shape and position possible for maximum efficiency.

Options/Variations: 300-711C (6" 1-stage), 300-712C (6" 2-stage), 300-713C (9" 1-stage), 300-714C (9" 2-stage), 300-715C (12" 1-stage), 300-717C (15" 1-stage), 300-719C (18" 1-stage)

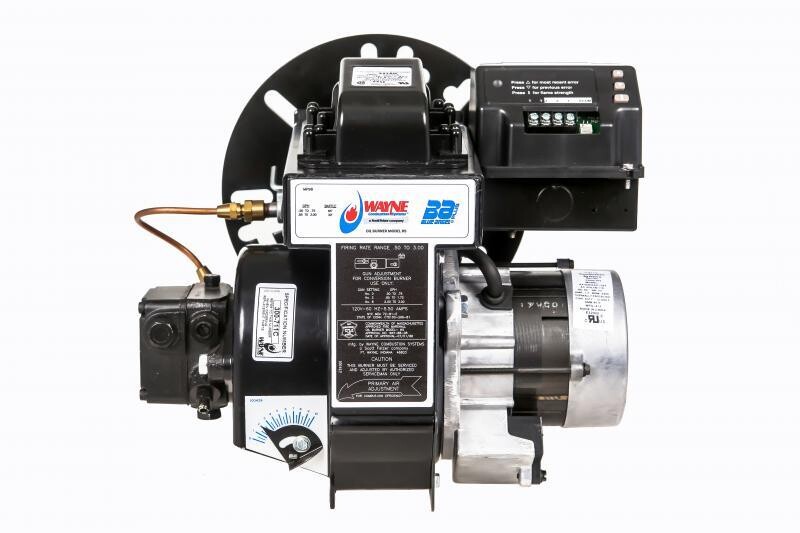

Wayne’s HS Blue Angel burner models provide superior reliability and ultra-high efficiency.  Their exclusive flow design provides forced air delivery at twice the normal pressure for more efficient combustion, application versatility and improved venting in poor draft conditions.

It’s Flamelock® retention head makes achieving a precise flame size, shape and position possible for maximum efficiency.

The HS burner has a wide firing range from 0.50 – 3.00 GPH and is easily serviced with off the shelf parts.

All Wayne HS burners are fired and tested prior to shipment.

Name Value
Agency ApprovalsUL MP98, ULC, CT, MEA 72-81-E, MASS WAY-88-08, ME
Air ConePrecision machined, cast iron construction.
Air Tube Length(s)6", 9", 12", 15", 18"
Air Tube Diameter(s)4" OD
Capacities0.50 - 3.00 GPH
ControlsControl Mounting and wired, Cadmium Sulfide cell included
Electrical (Voltage)120V, 220/240V
Electrical (Hertz)50 Hz, 60 Hz
Fan HousingOne piece die cast aluminum alloy, assures positive alignment of all moving components for life of unit.
FuelOil
Fuel Pump3450 RPM, single or two-stage, universally serviceable or replaceable.
Ignition120V primary, solid state ignitor, 17,500 secondary voltage
MotorSplit phase, 1/7 HP, 3450 RPM, 115V NEMA standard.
MountingAdjustable flange (standard w/ fully assembled units) and/or optional pedestal
Nozzle Adaptor"No drop" adaptor insures immediate oil cutoff. Eliminates oil, soot or after-drip.
Overall Height12.50"
Overall Width12.875"
Overall Length7.75" + tube length
Maximum Overall Length25.75"
Shipping Weight35 lbs. - 42 lbs. by spec
