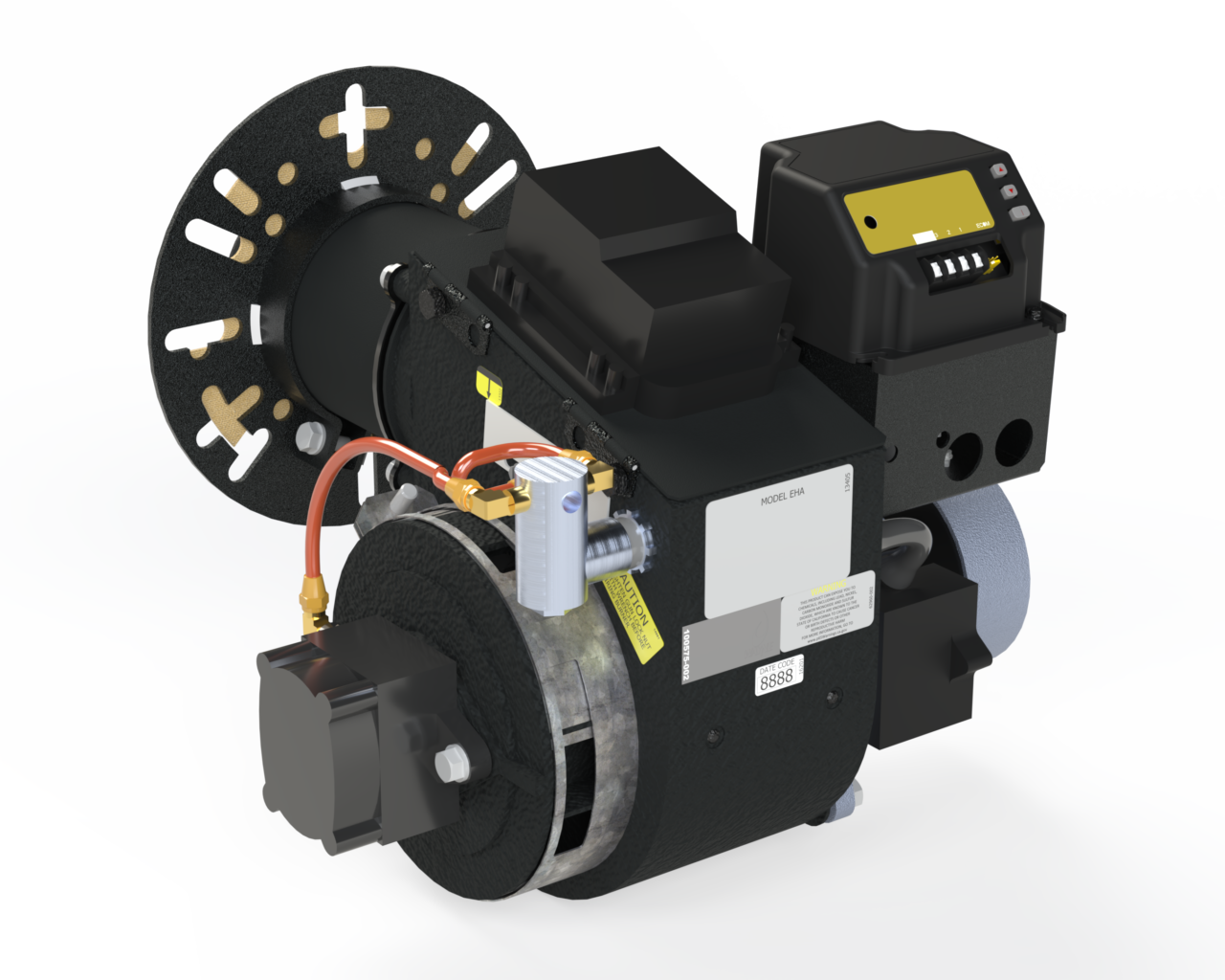

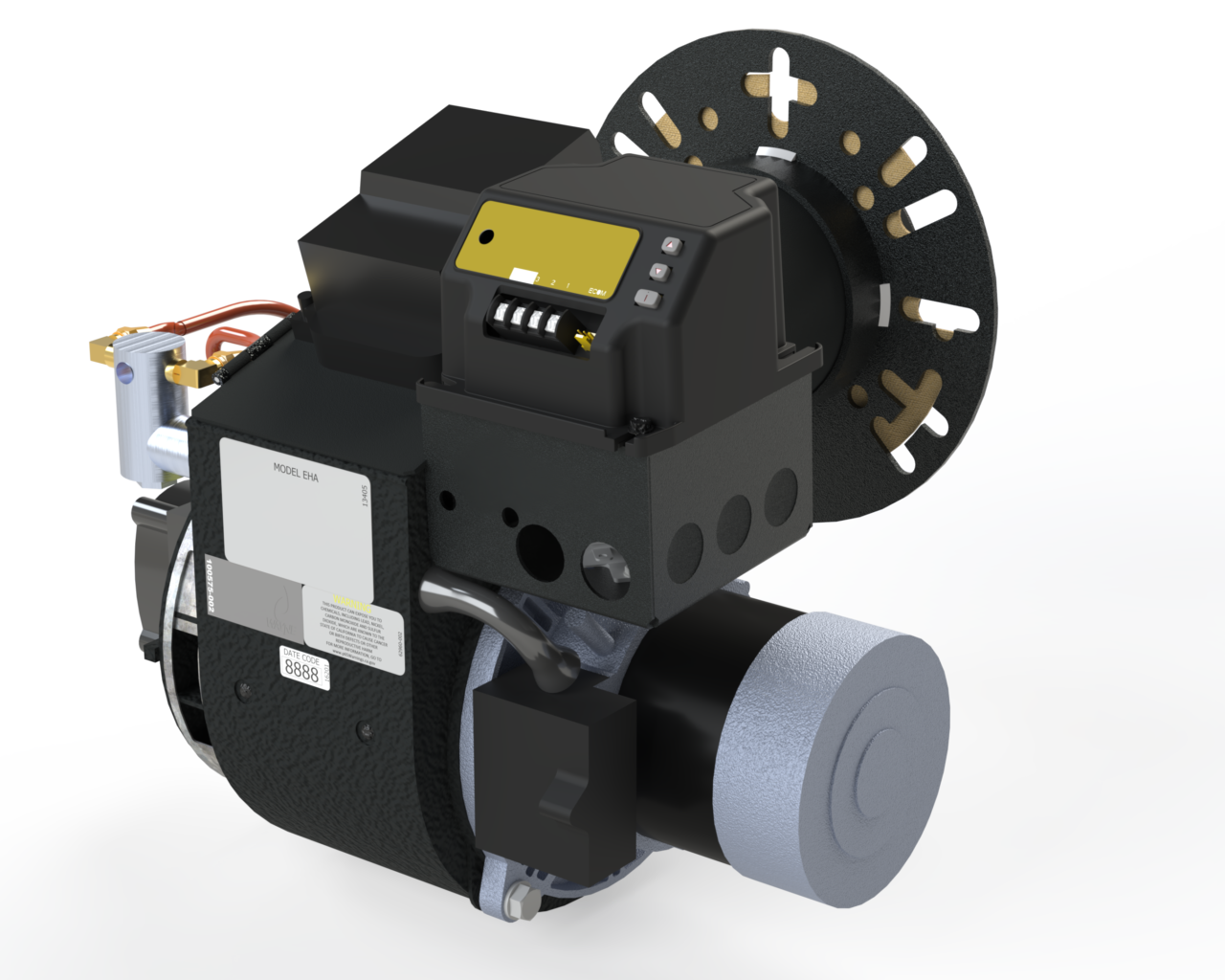

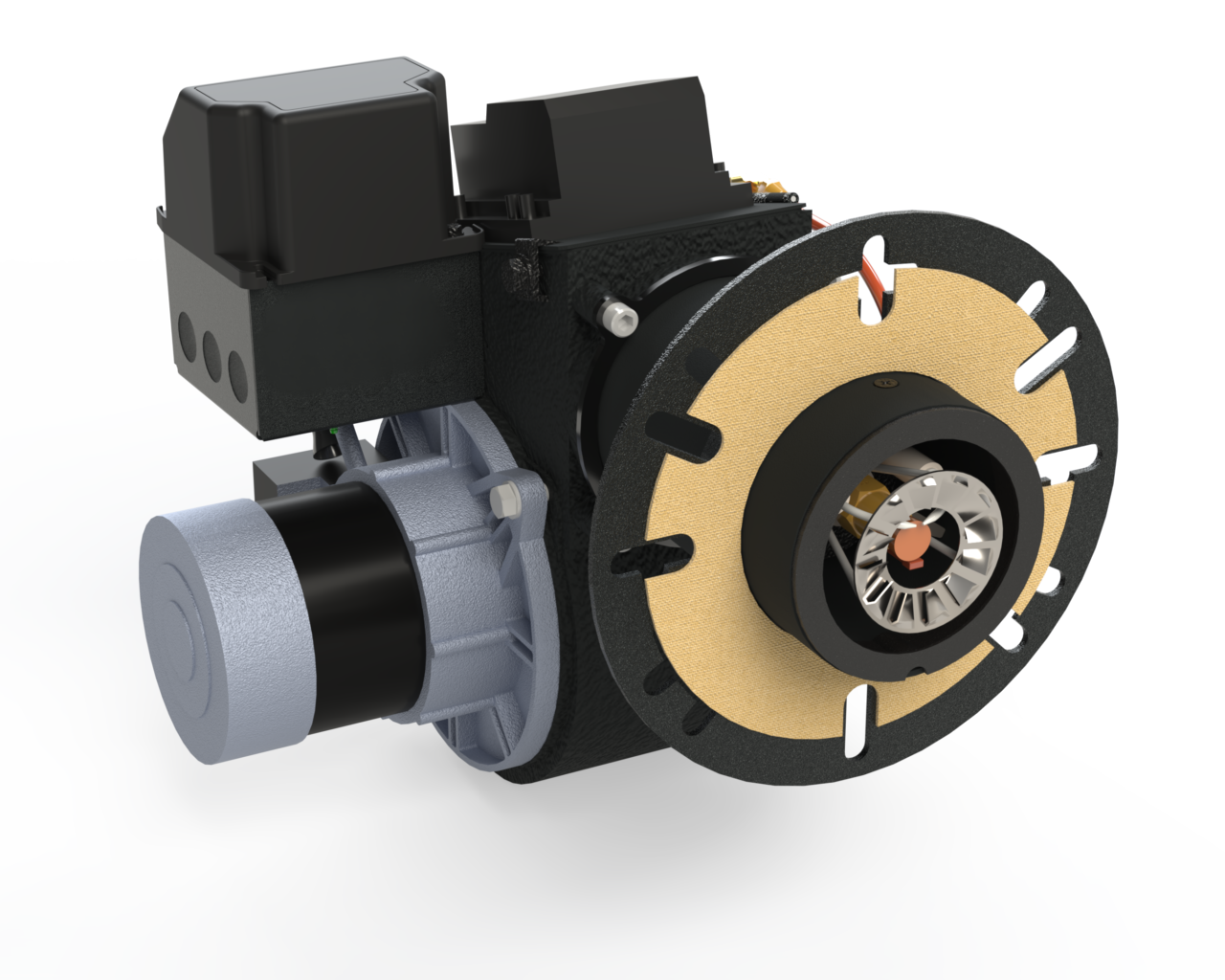

FH 4.00 - 13.00 GPH

As a large capacity burner, the FH burner is available from 4.00 GPH – 13.00 GPH and is suitable for burning No. 1 or No. 2 fuel oil.

Wayne’s FH burners come standard with Flamelock®, assuring positive flame stability, resulting in a clean and uniform high temperature flame.

Options/Variations: 300-032 (10"),  300-034 (15"),

As a large capacity burner, the FH burner is available from 4.00 GPH – 13.00 GPH and is suitable for burning No. 1 or No. 2 fuel oil.

Wayne’s FH burners come standard with Flamelock®, assuring positive flame stability, resulting in a clean and uniform high temperature flame.

With a clean ignition and sharp, positive, no-drip shutoff reduces carbon soot formation.

The FH burner features:

  • Lower emissions
  • Improved efficiencies
  • Pulsation free
  • Positive retention
  • Controlled flame pattern
  • Quiet stops and starts
  • Low nozzle temperatures
  • High static pressure

Name Value
Agency ApprovalsUL MP98, CT, MEA 32-81-E, MASS WAY 88-04, ME
Air AdjustmentAir adjusting bands interlock for positive air adjustment.
Air ConeHeavy-duty cast iron, easily changed for different firing ranges.
Air Tube Length(s)10" or 15" on standard specs, shorter lengths available
Capacities4.00 - 13.00 GPH
ControlsCadmium cell and relay installed
Electrical (Voltage)120V, 220/240V
Electrical (Hertz)50 Hz, 60 Hz
Fan HousingOne piece diecast.
FuelNo. 1 or No. 2 fuel oil
Fuel Pump3450 RPM fuel pump, one or two-stage.
IgnitionSolid State
Motor0.5 HP, 120V / 60 HZ
MountingAdjustable flange or optional pedestal mount
Nozzle AdaptorDual nozzle brass adaptor
Shipping Weight75 lbs. minimum
