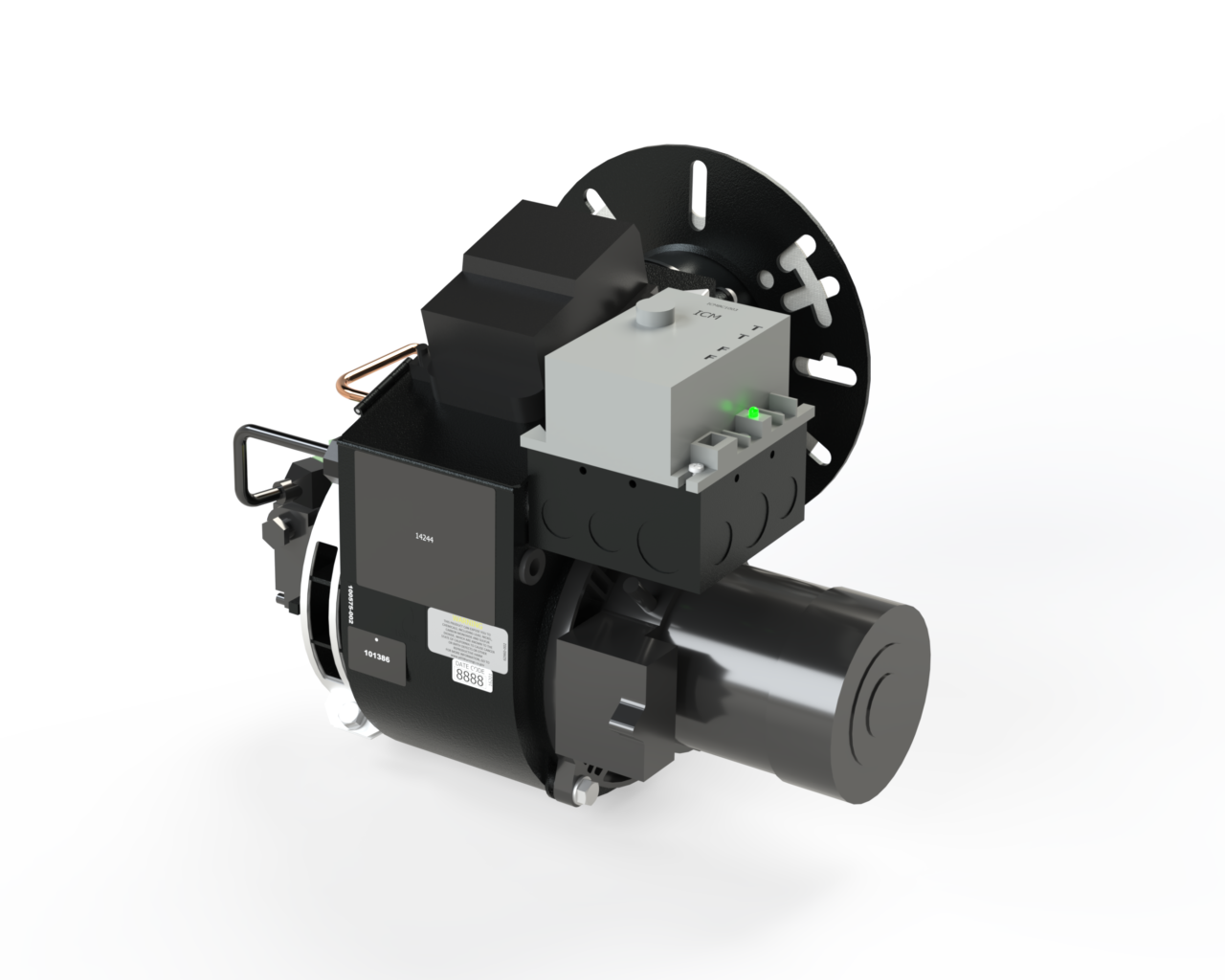

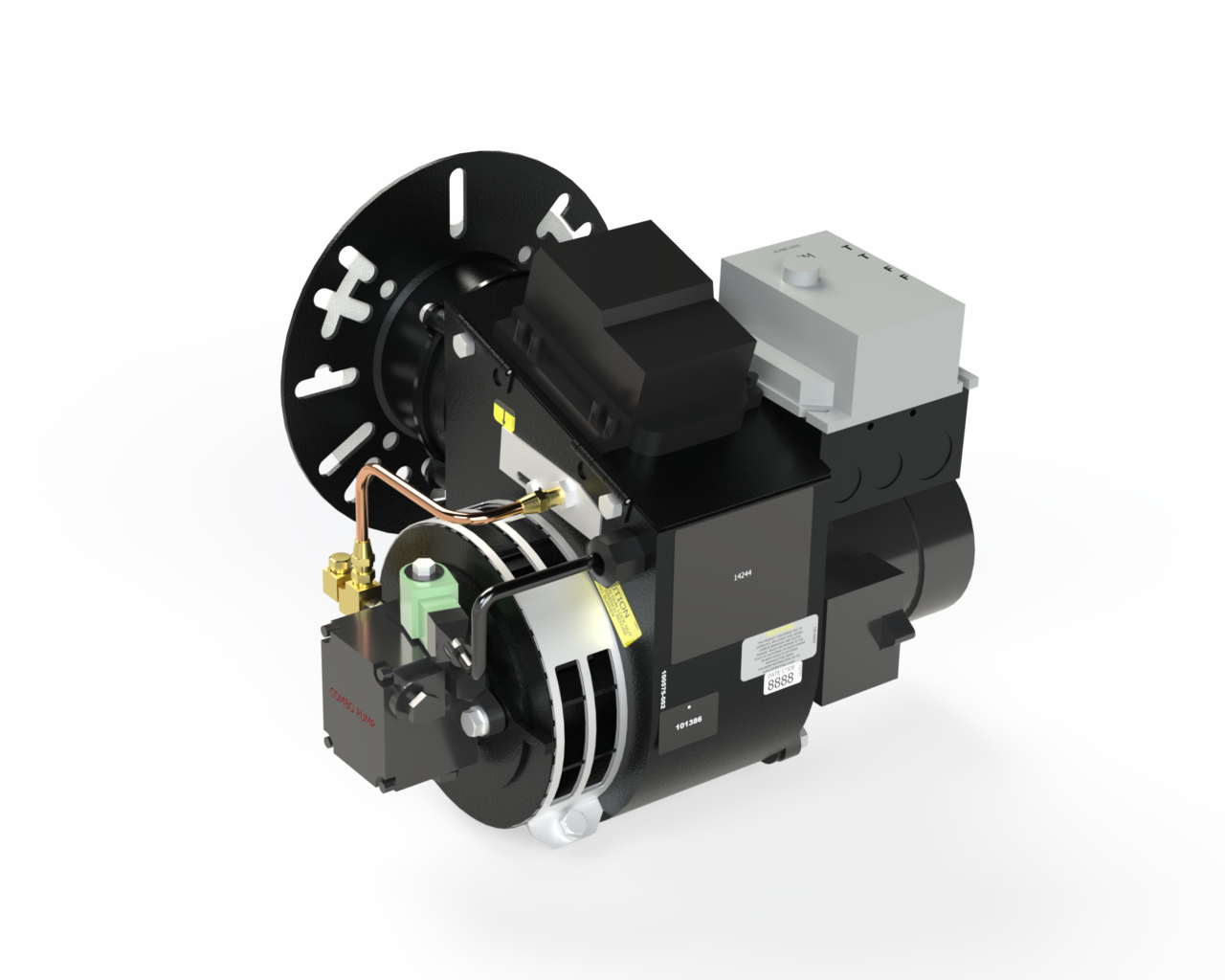

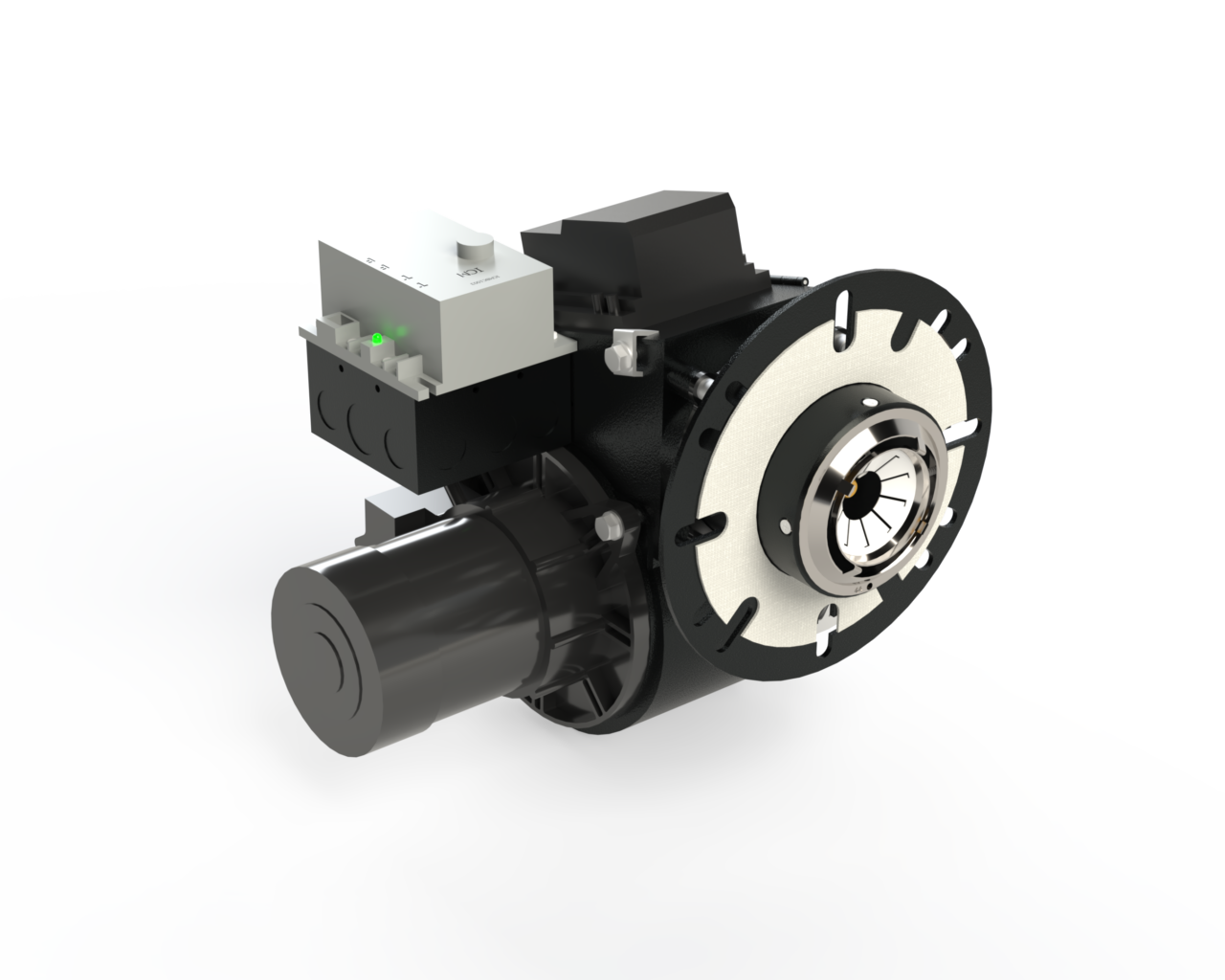

EHASR .50 - 3.00 GPH

Wayne’s EHA burners come standard with Flamelock®, assuring positive flame stability, resulting in a clean and uniform high temperature flame.

With a clean ignition and sharp, positive, no-drip shutoff reduces carbon soot formation.

The EHASR burner features:

Lower emissions
Improved efficiencies
Pulsation free
Positive retention
Controlled flame pattern
Quiet stops and starts
Low nozzle temperatures
High static pressure

Wayne’s EHA burners come standard with Flamelock®, assuring positive flame stability, resulting in a clean and uniform high temperature flame.

With a clean ignition and sharp, positive, no-drip shutoff reduces carbon soot formation.

The EHASR burner features:

  • Lower emissions
  • Improved efficiencies
  • Pulsation free
  • Positive retention
  • Controlled flame pattern
  • Quiet stops and starts
  • Low nozzle temperatures
  • High static pressure

Name Value
Agency ApprovalsUL MP98, CT, MEA 162-75-E, ME
Air AdjustmentAir adjusting bands interlock for positive air adjustment.
Air ConeHeavy-duty cast iron, easily changed for different firing ranges.
Air Tube Length(s)6", 9", 12", 15", 18"
Capacities0.50 - 3.00 GPH
ControlsStandard - 15 second control with cadmium cell installed.
Electrical (Voltage)120V, 220/240V
Electrical (Hertz)50 Hz, 60 Hz
Fan HousingOne piece diecast
FuelNo. 1 or No. 2 fuel oil
Fuel Pump3450 RPM fuel pump, one or two-stage.
Ignition10,000 V constant duty transformer. TV-Radio interference proof. Positive make or break contact with electrodes. Swing away design swings open for access to gun assembly.
Motor1/4 HP, NEMA Standard, split phase 3450 RPM, 115V / 60 HZ
MountingAdjustable flange or optional pedestal mount
Nozzle AdaptorNo drip brass adaptor insures sharp oil cutoff when fuel pump shuts off. Bleeds air from line, prevents after drip, eliminating smoke, soot and carbon formation.
Shipping Weight42 lbs.
